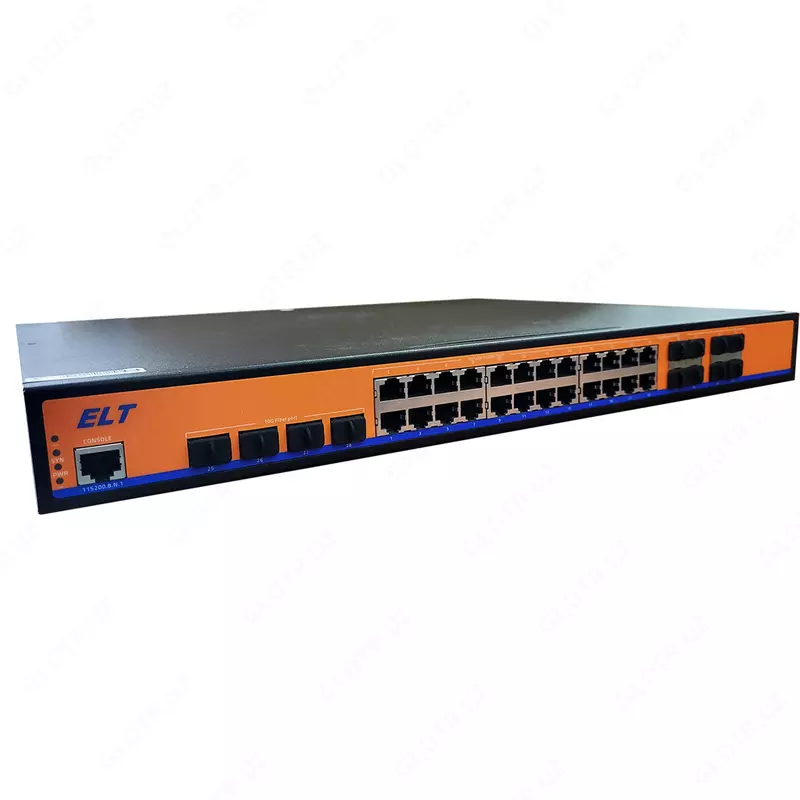

28-Port 10G SFP+ L3+ Управляемый свитч . 8 SFP Combo

Этот управляемый PoE-коммутатор с поддержкой 10G SFP+ uplink имеет 24 порта Gigabit PoE, 8 комбинированных портов Gigabit RJ45/SFP и 4 порта 10G SFP+. Он поддерживает маршрутизацию на уровне 3 и подходит для приложений, требующих высокой пропускной способности и возможности передачи питания через Ethernet. Коммутатор предназначен для использования в средах, таких как малые и средние предприятия, кампусные сети и интернет-кафе.
Specifications

I/O Interface

Power

AC 100-240V/50/60Hz

Ethernet

24 * 10/100/1000Mbps PoE Ports

8 * Combo Gigabit RJ45/SFP ports

4 * 10G SFP+ Ports

1 * RJ45 Console Port

Performance

Bandwidth

144Gbps

Packet Buffer Memory

96Mpps

DDR SDRAM

256MB

Flash Memory

32MB

Package cache

12Mbit

MAC Address

16K

Jumbo frame

9.2K

VLANs

4096

MTBF

100000 hour

Standard

Network protocol

IEEE 802.3：Ethernet MAC Protocol

IEEE 802.3i：10BASE-T Ethernet

IEEE 802.3u：100BASE-TX Fast Ethernet

IEEE 802.3ab：1000BASE-T Gigabit Ethernet

IEEE 802.3z：1000BASE-X Gigabit Ethernet (optical fiber)

IEEE 802.3ae：10G Ethernet (optical fiber)

IEEE 802.3az：Energy Efficient Ethernet

IEEE 802.3ad：Standard method for performing link aggregation

IEEE 802.3x：Flow control

IEEE 802.1ab： LLDP/LLDP-MED (Link Layer Discovery Protocol)

IEEE 802.1p：LAN Layer QoS/CoS Protocol Traffic Prioritization(Multicast filtering function)

IEEE 802.1q：VLAN Bridge Operation

IEEE 802.1x：Client/Server Access Control and Authentication Protocol

IEEE 802.1d：STP

IEEE 802.1s：MSTP

IEEE 802.1w：RSTP

PoE protocol

IEEE802.3af（15.4 W）,IEEE802.3at（30 W）,

Industry Standard

EMI: FCC Part 15 CISPR (EN55032) class A

EMS: EN61000-4-2 (ESD)、

EN61000-4-4 (EFT)、

EN61000-4-5 (Surge)

Network Medium

10BASE-T: Cat3、4、5 or above UTP(≤100 M)

100BASE-TX: Cat5 or above UTP(≤100 M)

1000BASE-TX: Cat5 or above UTP(≤100 M)

Multi-mode Fiber: 50/125、62.5/125、100/140um

Single-mode Fiber: 8/125、8.7/125、9/125、10/125um

Certification

Safety Certificate

CE、FCC、RoHS

Environment

Working Environment

Working Temperature：-10~50°C

Storage Temperature：-40~70°C

Working Humidity ：10%~90%，non-condensing

Storage Temperature：5%~90%，non-condensing

Working Height：Maximum 10,000 feet

Storage heigh：Maximum 10,000 feet

Indication

PWR(Power indicator)

Lighting：Powered , Un-Light：No Power

SYS(System lights)

Lighting： System is normal , Flashing：system startup

Link(Link light)

Lighting：Connecting  , Flashing：Data Transmit  , Un-Light：Disconnect

PoE（light）

Lighting：PoE supplying; Un-Light：No PoE supply

Act(data light)

Lighting：Connecting  , Flashing：Data Transmit  , Un-Light：Disconnect

Mechanical

Structure Size

Product Dimensions: 440*280*45mm

Package Dimensions: 570*450*90mm

Product N.W: 3.63KG

Product G.W: 4.39KG

Packing Info

Carton Dimensions: 600*490*460mm

Packing Qantity: 5PCS

Packing weight: 24KG

Power Voltage

Input Voltage: AC100-240V/50-60Hz

Power supply: 52V7.7A 400W

Package List

PoE switch: 1 Set、Instruction manual: 1 PCS、Certificate: 1 PCS、Power cord: 1PCS

Serial cable: 1PCS、Rack ear: 1 Pairs

Software function

Software Function

Basic function

Support hardware watchdog, factory reset, system and port LED

Support global information, statistical information, log information

Support User management, alarm management, configuration management

Support Port rate, duplex, flow control, maximum frame length configuration

Support Port mirroring, port speed limit, port energy saving

Layer 3 Interface

Support Layer 3 interface

Support IPv4, IPv6 address configuration

Support ARP configuration

Support ND configuration

Layer 3 Routing

Support IPv4 static routing

Support IPv6 static routing

DHCP

Support DHCP server

Support DHCP relay

Support DHCP Snooping

VLAN

Support 4K VLAN

Support 802.1Q VLAN，baesd on port VLAN

SupportAccess、Trunk、Hybrid VLAN mode

Support GVRP (VLAN registration protocol)

Support MAC VLAN 、IP VLAN

Support Voice VLAN

MAC address

Support MAC address automatic learning and aging

Support Static, dynamic, filtered address table

Security features

Password protection

Support Restrict user access based on port number, IP address, MAC address

Support HTTPS、SSH V1/V2

Support VLAN-IP-MAC-PORT binding

Support ARP detection, IP source protection, DoS protection

Support DHCP Snooping、DHCP Attack protection

Support 802.1X Certification

SupportAAA (Authentication, Authorization, Accounting), Support RADIUS protocal

Support Port security, port isolation

Access control

Support L2(Layer 2)～L4(Layer 4) Packet filtering function

Support Port mirroring, flow rate limiting, QoS remarking

QOS

Support 8 port queues

Support Port priority, 802.1P priority, DSCP priority

Support SP, WRR Priority scheduling algorithm

Spanning tree

Support STP(IEEE 802.1d), RSTP(IEEE 802.1w) and MSTP(IEEE 802.1s) protocal

Support Multi-instance, Support Aggregate interface

Support  BPDU protection

Multicast

Support IGMP v1/v2/v3 Snooping

Support MLD v1/v2 Snooping

Support Layer 2 multicast fast leave mechanism, querier

Support Layer 2 IPv4 static multicast

Support Layer 2 IPv6 static multicast

Support IGMP v1/v2/v3 Layer 3 multicast

Storm suppression

Support multicast suppression

Support broadcast storm suppression

Support unknown unicast suppression

Ring protection

Support Ring protection

Link Aggregation

Support Static Aggregation

Support LACP Dynamic Aggregation

Support based on IP, MAC, mixed load-balancing modes

Maximum support 8 aggregation groups (8 ports per aggregation group)

IPv6

Support IPv6 Ping、IPv6 Traceroute、IPv6 Telnet

Support IPv6 SSH

Support IPv6 HTTP 、IPv6 HTTPS

Management and Maintenance

Support WEB Management (HTTP、HTTPS)

Support CLI (Telnet, SSH V1/V2, Local serial port)

Support SNMP V1/V2/V3

Support RMON V2

Support LLDP Device discovery

Support SNTP Time synchronization

Support CPU Monitoring, Memory Monitoring

Support System log, classification warning

Support Ping, Traceroute detection, cable detection
