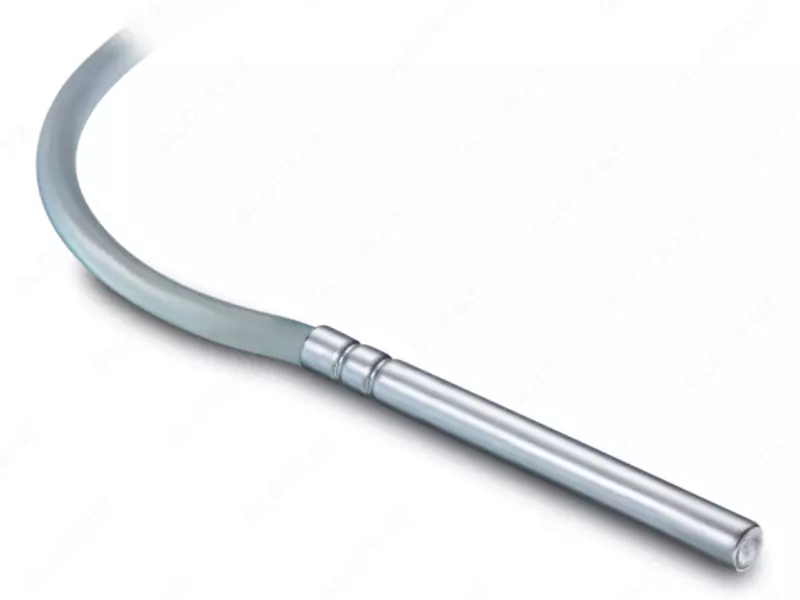

8141 cable sensor - Датчики температуры

Process temperature
-50 … 205 °C
Pt100 accuracy class (EN 60751)
B (± 0.3 °C at 0 °C)
± (0.3 + 0.005 × t)°C
A (± 0.15 °C at 0 °C)
± (0.15 + 0.002 × t)°C
1/3 B (± 0.1 °C at 0 °C)
± 1/3 × (0.3 + 0.005 × t)°C
1/6 B (± 0.05 °C at 0 °C)
± 1/6 × (0.3 + 0.005 × t)°C
Pt1000 accuracy class (EN 60751)
B (± 0.3 °C at 0 °C)
± (0.3 + 0.005 × t)°C
1/3 B (± 0.1 °C at 0 °C)
± 1/3 × (0.3 + 0.005 × t)°C
Process pressure
≤ 25 bar
Process connection
Sensor length
60 mm
Sensor tube material
AISI 316Ti (1.4571)
Surface roughness wetted parts
Ra ≤ 0.8 µm
Ambient conditions
Degree of protection (EN 60529)
IP 65
Humidity
< 98 % RH , condensing
Vibration (sinusoidal) (EN 60068-2-6)
1.6 mm p-p (2 … 25 Hz), 4 g (25 … 100 Hz), 1 octave / min.
Output signal
Without transmitter
Pt100
Pt1000
Electrical connection
Cable
Sensor with 4-wire silicone cable
