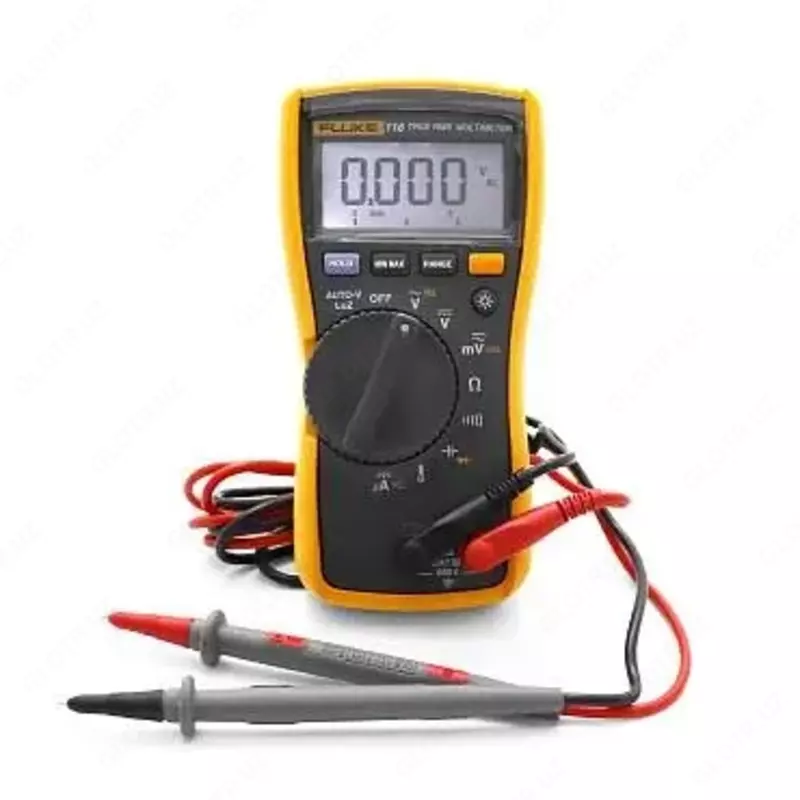

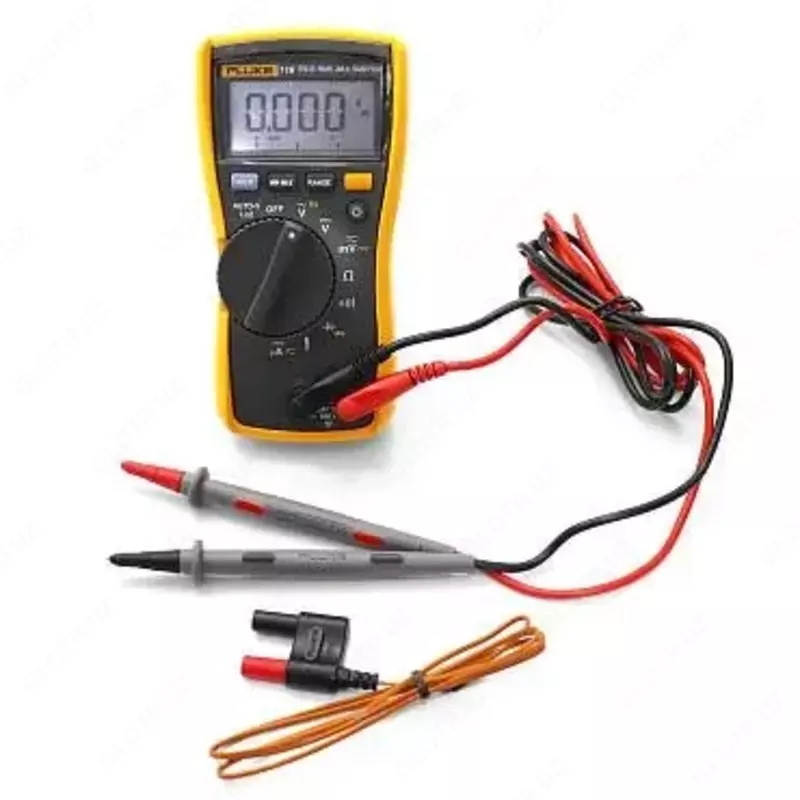

Fluke 116 Texnik xususiyatlari
Har qanday aloqa va tuproq orasidagi maksimal kuchlanish
600 V

To'lqinlardan himoya qilish
6 kV cho'qqisi, IEC 61010-1 ga muvofiq 600 V Cat. III, ifloslanish darajasi 2

Displey
Raqamli: 6000 ta hisoblash, soniyada 4 ta yangilanish

Gistogramma
33 ta segment, soniyada 32 ta yangilanish

Ishlash harorati
-10 ° C dan + 50 ° C gacha

Saqlash harorati
-40 ° C dan + 60 ° C gacha

Batareya turi
9V ishqoriy batareya, NEDA 1604A yoki IEC 6LR61

Batareya muddati
Odatda orqa yorug'liksiz taxminan 400 soat

Hajmi
167 x 84 x 46 mm

Og'irligi
550 gr

Millivolt diapazonidagi doimiy kuchlanish
600,0 mV
Ruxsat
0,1 mV
Xato
±([% o'qish] + [birliklarni hisoblash]): 2,0% + 3
Volt diapazoni/ravshanligidagi doimiy kuchlanish
6.000V / 0.001V
Diapazon/ravshanlik
60,00 V / 0,01 V
Diapazon/ravshanlik
600,00 V / 0,1 V
Avtomatik rejimda kuchlanishni o'lchash Diapazon
600,0 V
Ruxsat
0,1 V
Xato
2,0% + 3 (DC, 45 Gts dan 500 Gts gacha) 4,0% + 3 (500 Gts dan 1 kHz)
Millivolts1 haqiqiy RMS diapazonidagi AC kuchlanish
600,0 mV
Ruxsat
0,1 mV
Xato
1,0% + 3 (DC, 45 Gts dan 500 Gts gacha) 2,0% + 3 (500 Gts dan 1 kHz)
Volts1 True RMS diapazoni/ravshanligidagi AC kuchlanish
6.000V / 0.001V
Diapazon/ravshanlik
60,00 V / 0,01 V
Diapazon/ravshanlik
600,0 V / 0,1 V
Xato
1,0% + 3 (DC, 45 Gts dan 500 Gts gacha) 2,0% + 3 (500 Gts dan 1 kHz)
Butunlik diapazoni
600 Ohm
Ruxsat
1 Ohm
Xato
Ovozli signal yoqilgan < o'chirilgan 20 Ohm > 250 Ohm; 500 mksek va undan ortiq davom etadigan ochiq yoki qisqa tutashuv nosozliklarini aniqlash.
Qarshilik diapazoni/ravshanligi
600,0 Ohm / 0,1 Ohm
Diapazon/ravshanlik
6 000 kOm / 0,001 kOm
Diapazon/ravshanlik
60,00 kOm / 0,01 kOm
Diapazon/ravshanlik
600,0 kOm / 0,1 kOm
Diapazon/ravshanlik
6.000 Mom / 0.001 Mom
Xato
0,9% + 1
Diapazon/ravshanlik
40.00 Mom / 0.01 Mom
Xato
1,5% + 2
Diyot sinov diapazoni/ravshanligi
2.000V / 0.001V
Xato
0,9% + 2
Imkoniyatlar diapazoni/ravshanligi
1000 nF / 1 nF
Diapazon/ravshanlik
10,00 µF / 0,01 µF
Diapazon/ravshanlik
100,0 µF / 0,1 µF
Diapazon/ravshanlik
9999 uF / 1 uF
Diapazon/ravshanlik
100 mkF dan 1000 mkF gacha
Xato
1,9% + 2
Diapazon/ravshanlik
> 1000 µF
Xato
5% + 20%
LoZ past kirish sig'imi diapazoni
1 nF dan 500 F gacha
Xato
Standart 10% + 2
Harorat2 (Termojuft-K) diapazoni/ravshanligi
-40 °C dan 400 °C / 0,1 °C gacha
Xato
1% + 102
Diapazon/ravshanlik
-40 °C dan 400 °C / 0,1 °C gacha
Xato
1% + 182
Mikroamperlarda o'zgaruvchan tokni o'lchash (45 Gts dan 500 Gts gacha) diapazon/ravshanlik
600,0 mkA / 0,1 mkA
Xato
1,0% + 2
Mikroamper diapazonida / o'lchamlarida doimiy oqim o'lchovi
600,0 mkA / 0,1 mkA
Xato
1,0% + 2
Chastota (kuchlanish yoki oqim kiritish)2 Diapazon/Rolyutsiya
99,99 Gts / 0,01 Gts
Diapazon/ravshanlik
999,99 Gts / 0,1 Gts
Diapazon/ravshanlik
9,999 Gts / 0,001 Gts
Diapazon/ravshanlik
50,00 Gts / 0,01 Gts
Xato
0,1% + 2
