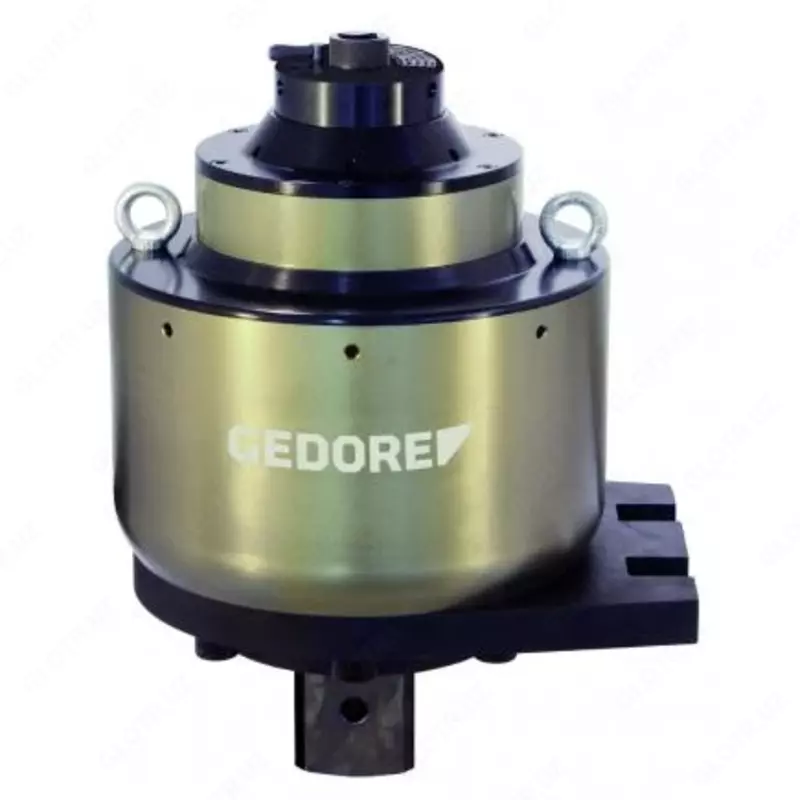

GEDORE 2653168 - DVV-540RS, - Torque multiplier Dremoplus, Alu 54000 Nm,

Especially suitable for:
Heavy industry
Oil industry
Petrochemicals
Features:
Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
With a three-stage planetear
High-performance aluminium housing
Reaction arm of chrome-vanadium steel
Model with transmission ratio 1:175
With anti-wind-up ratchet (RS)
With non-destructive overload protection "Slipper" to protect theearbox, right and left hand
With fixture for welding on a reaction arm (optional)
Guaranteed accuracy: Better than +/- 3 % tolerance
To operate with a suitable torque wrench
1 actuating arm hexagonal 27 mm, 354 mm, No. E-28 LRZ-27
Output square with hole for Impact sockets with locking pin and ring

• Backflow protection: Yes
• Content:
  - DREMOPLUS ALU torque multiplier
  - Delivery in a stable box on a pallet
  - Adjustment table
  - Detailed technical information is available upon request
• Design: With device for welding a reaction arm
• Drive holder, square [inch]: 3/4"
• Drive support, square [metric]: 6,3 mm
• Input torque (max.) [N-m]: 380
• Output square [inch]: 2.1/2
• Output square [metric]: 63 mm
• Output torque (max.) [Lbf-ft]: 40330
• Output torque (max.) [N-m]: 54000
• Overall Length: 230 mm
• Overall width without torque arm: 270 mm
• Square drive [inch]: 3/4"
• Square drive at the output: 2.1/2
• Total height without torque arm: 415 mm
