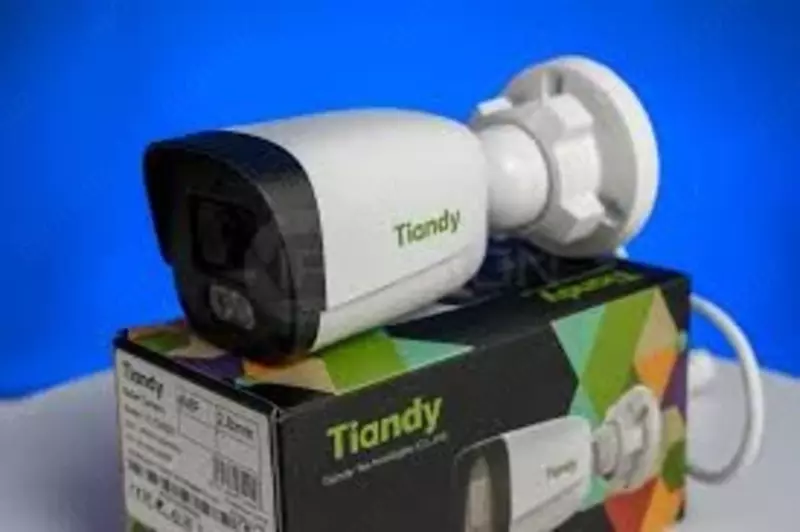

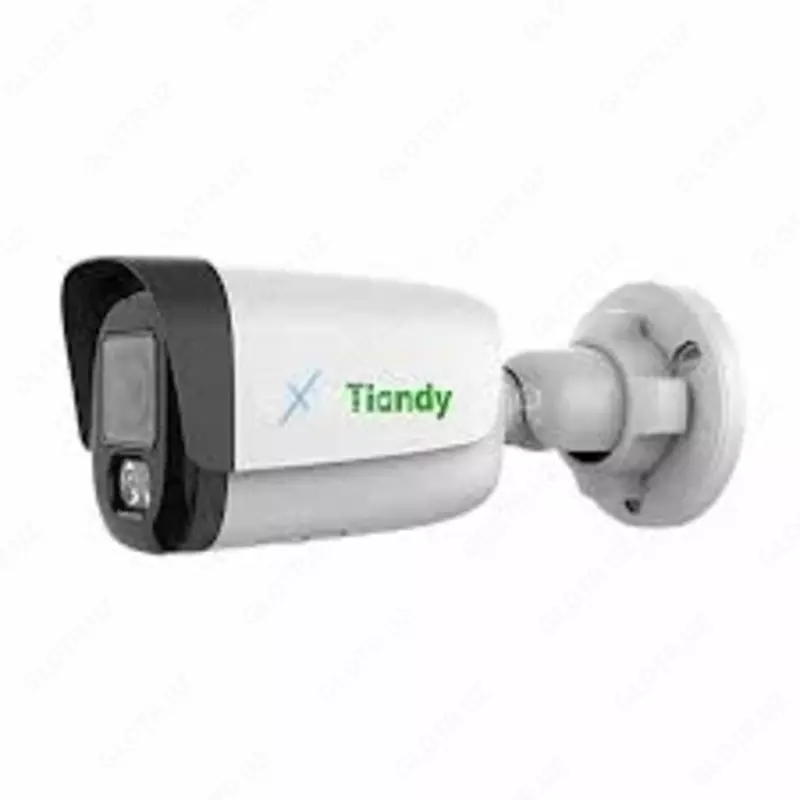

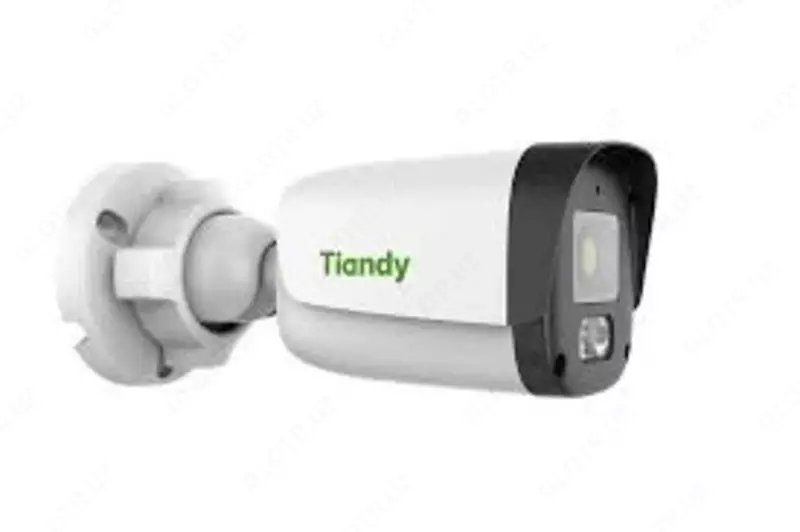

IP Камера TIANDY TC-C34QN I3 2.8mm

Камера

Матрица

1/3"CMOS

Минимальная освещенность

Color:0.02Lux@(F1.6,AGC ON),B/W:0Lux with IR

Скорость затвора

1s-1/100000s

Автопереключение день/ночь

IR-cut filter with auto switch (ICR)

Технология WDR

DWDR

S/N

>40dB

Angle Adjustment

0-360°;0-80°;0-360°

Lens

Lens Type

Fixed

Focal Length

2.8mm

Lens Mount

M12

Aperture Range

F1.6,Fixed

Field of View

92.8°(H);52.2°(V);106.5°(D)

DORI Distance

Detect:56m
Observe:22.2m
Recognize:11.2m
Identify:5.6m

Illuminator

IR LEDs

2

IR Distance

30m

Wavelength

850nm

White LEDs

N/A

Whitelight Distance

N/A

Compression Standard

Video Compression

S+265/H.265/H.264B/H.264M/H.264H

Video Bit Rate

32k-6Mbps

Audio Compression

G.711A/G.711U

Audio  Sampling Rate

8kHz


Max. Resolution

2560x1440@20fps

Main Stream

PAL:20fps(2560x1440,2304x1296,1920x1080,1280x720)
NTSC:20fps(2560x1440,2304x1296,1920x1080,1280x720)

Sub Stream

PAL:20fps(704x576,704x288,352x288,640x360)
PAL:20fps(704x480,704x240,352x240,640x360)

Third Stream

N/A

BLC

Yes

HLC

Yes

AGC

Yes

3D DNR

Yes

White Balance

Auto/Semi-auto/Manual/Sunny/Natural light/Warm light/Sodium lamp/Incandescent lamp/Locked white balance

ROI

N/A

Corridor mode

N/A

EIS

N/A

OSD

1region;16*16/32*32/48*48/64*64

Picture Overlay

N/A

Privacy Mask

4 regions

Defog

Yes

Feature

Alarm Trigger

Motion Detection;IP Address Conflict

Linkage Method

trigger
capture

Video Analytics

N/A

Rules of behavior analyse in 1 scene

N/A

Early Warning(EW)

N/A

Auto-Tracking

N/A

Face Mode

N/A

Face Detection Performance

N/A

Network

ANR

N/A

Protocols

HTTP;TCP/IP;UDP;ICMP;DHCP;DNS;NTP;IPv4;Telnet;Unicast

System Compatibility

onvif Profile S/T;CGI;MIL STONE

Remote Connection

≤2

Client

Easy7 Smart Client

Moblie Client

EasyLive Plus

Web

IE10+;Firefox52+;Edge89+;Safari11+;Chrome57+

Interface

Communication Interface

1 RJ45 10M/ 100M self adaptive Ethernet port

Audio I/O

N/A

Alarm I/O

N/A

Built-In Mic

Yes

Built-In Speaker

N/A

Reset Button

N/A

On-board storage

N/A

Additional interfaces

N/A

General

Web Client Language

12languages
English/Spanish/Italian/Turkish/Russian/Thai/French/Polish/Arabic/Vietnamese/Portuguese/Japanese

Operating Temperature

-30℃-60℃

Operating Humidity

0-95%

Storage Temperature

-30℃-60℃

Storage Humidity

0-95%(non-condensing)

Power Supply

POE 802.3af,MAX 6W

Protection

Surge protection 2000V;Lightning proof 6000V;IP67

Boundary Dimensions

164(L)73(W)73(H)mm

Package Dimensions

180(L)90(W)95(H)mm

GrossWeight

0.3kg

NetWeight

0.22kg
