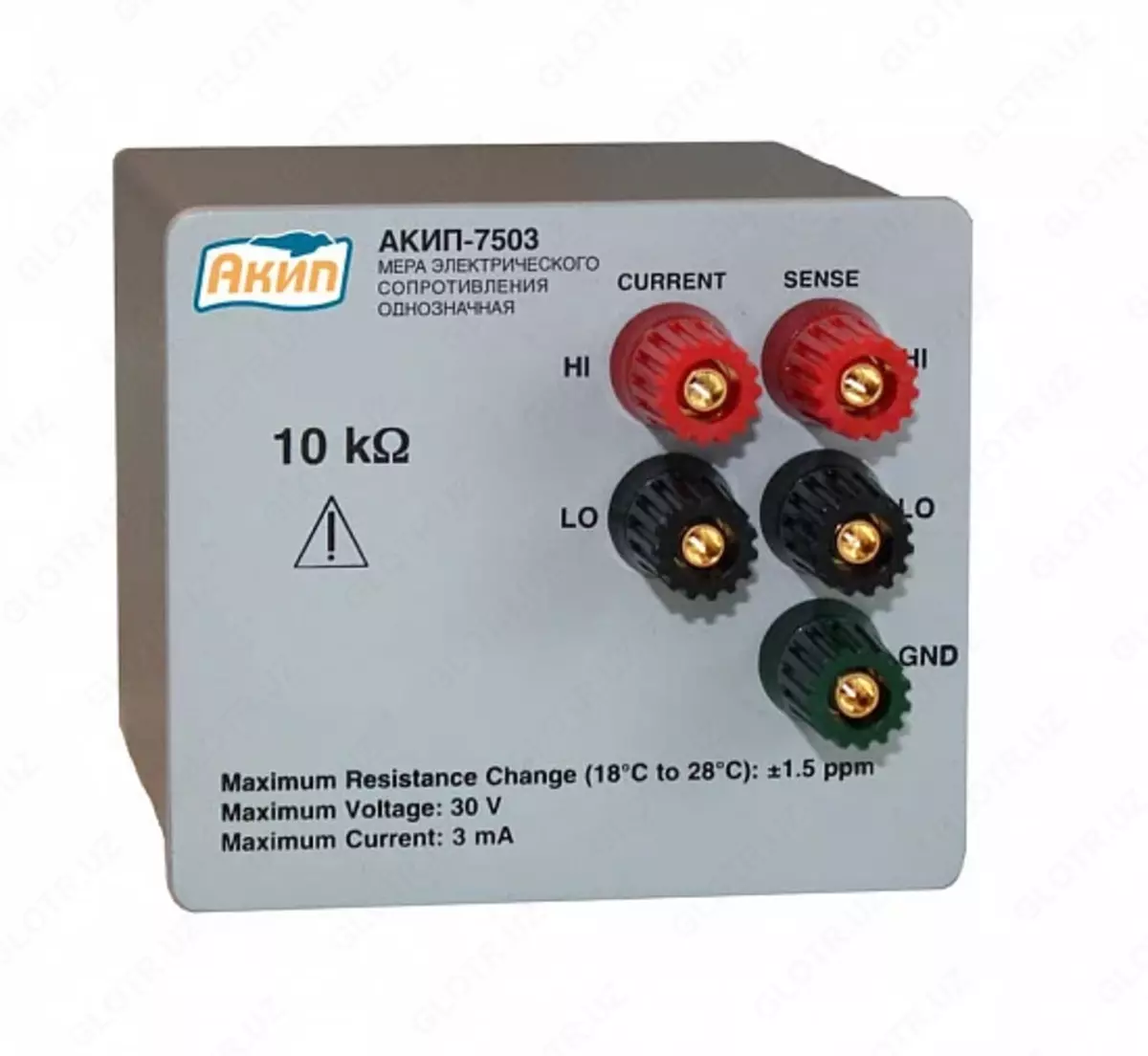

AKIP-7503 - qarshilikning aniq o'lchovi

"AKIP-7503 yagona qiymatli qarshilik o'lchovining xususiyatlari:

1 mOm dan 2 TOhm oralig'ida yuqori aniqlikdagi elektr qarshilik choralari;

Nominal qiymatdan og'ish: ± 2 x 10-6 dan;

Qarish: ±4 x 10-6 / yil dan;

Past harorat koeffitsienti;

Ulanish sxemalari: ≤20 MOhm - 4-simli + GND/Ground; ≥100 MOhm - 2-simli + GND / Ground + GUARD / Himoya;

Og'irligi 900 g.

AKIP-7503 yagona qiymatli qarshilik o'lchovining texnik xususiyatlari:

Model Nominal qiymat Nominal qiymatdan og'ish Qarish/yil Harorat koeffitsienti yoki ish diapazoni

(23 °C ga nisbatan 18 - 28 °C) Maksimal quvvat / kuchlanish Qo'shimcha og'ish

1 kHz chastotada

O'chirishsiz 1 * 10-6 o'chirish 3 * 10-6 o'chirish

AKIP-7503-0,001Ohm 1 mOm ±5*10-5 ±5*10-5 ±2,5*10-5/°S < 1*10-4

AKIP-7503-0,0019Ohm 1,9 mOm ±5*10-5 ±5*10-5 ±2,5*10-5/°S <1*10-4

AKIP-7503-0,002Ohm 2 mOm ±5*10-5 ±5*10-5 ±2*10-5/°S <1*10-4

AKIP-7503-0,01Om 10 mOm ±5*10-6 ±1,5*10-5 ±5*10-6/°S 25 mVt 50 mVt 200 mVt <1*10-4

AKIP-7503-0,019Ohm 19 mOm ±5*10-6 ±1,5*10-5 ±5*10-6/°S 25 mVt 50 mVt 200 mVt <1*10-4

AKIP-7503-0,02Ohm 20 mOm ±5*10-6 ±1,2*10-5 ±5*10-6/°S 25 mVt 50 mVt 200 mVt <1*10-4

AKIP-7503-0,1Om 100 mOm ±5*10-6 ±1,2*10-5 ±2*10-6/°S 50 mVt 100 mVt 250 mVt <1*10-4

AKIP-7503-0,19Om 190 mOm ±5*10-6 ±1,2*10-5 ±2*10-6/°S 50 mVt 100 mVt 250 mVt <1*10-4

AKIP-7503-0,2Om 200 mOm ±5*10-6 ±1,2*10-5 ±2*10-6/°S 50 mVt 100 mVt 250 mV <1*10-4

AKIP-7503-1Ohm 1 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 175 mVt 350 mVt 850 mVt <1*10-4

AKIP-7503-1,9 Ohm 1,9 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 175 mVt 350 mVt 850 mVt <1*10-4

AKIP-7503-2Ohm 2 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 175 mVt 350 mVt 850 mVt <1*10-4

AKIP-7503-10Ohm 10 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-19Ohm 19 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-20Ohm 20 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-25Ohm 25 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-30Ohm 30 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-50Ohm 50 Ohm ±2*10-6 ±8*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-100Ohm 100 Ohm ±2*10-6 ±6*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-190Ohm 190 Ohm ±2*10-6 ±6*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-200Ohm 200 Ohm ±2*10-6 ±6*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-350Ohm 350 Ohm ±2*10-6 ±6*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-400Ohm 400 Ohm ±2*10-6 ±6*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-1kOhm 1 kOm ±2*10-6 ±6*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-1,9 kOm 1,9 kOm ±2*10-6 ±6*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-2kOm 2 kOhm ±2*10-6 ±6*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-4kOm 4 kOhm ±2*10-6 ±4*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-10kOm 10 kOm ±2*10-6 ±4*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-19kOhm 19 kOm ±2*10-6 ±4*10-6 ±1,5*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-20kOm 20 kOm ±2*10-6 ±4*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-4

AKIP-7503-100kOm 100 kOm ±2*10-6 ±6*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <2*10-4

AKIP-7503-190kOm 190 kOm ±2*10-6 ±8*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <2*10-4

AKIP-7503-200kOm 200 kOm ±2*10-6 ±8*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <2*10-4

AKIP-7503-1MOhm 1 MOhm ±2*10-6 ±8*10-6 ±2*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-3

AKIP-7503-1,9 MOhm 1,9 MOhm ±2*10-6 ±9*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-3

AKIP-7503-2 MŌ 2 MŌ ±2*10-6 ±9*10-6 ±3*10-6 jami. 100 mVt 200 mVt 500 mVt <1*10-3

AKIP-7503-10 MŌ 10 MŌ ±2*10-6 ±9*10-6 ±3*10-6 jami. 500 V 1000 V 2500 V <1%

AKIP-7503-19 MŌ 19 MŌ ±2*10-6 ±1*10-5 ±4*10-6 jami. 1000 V 2000 V 5000 V

AKIP-7503-20 MŌ 20 MŌ ±2*10-6 ±1*10-5 ±4*10-6 jami. 1000 V 2000 V 5000 V

AKIP-7503-100 MŌ 100 MŌ ±1*10-5 ±2*10-5 ±5*10-6 jami. 2000 V 4000 V 5000 V

AKIP-7503-190 MŌ 190 MŌ ±1*10-5 ±2*10-5 ±5*10-6 jami. 2000 V 5000 V

AKIP-7503-200 MŌ 200 MŌ ±1*10-5 ±2*10-5 ±5*10-6 jami. 5000 V

AKIP-7503-1GOhm 1 GOhm ±0,1% ±2*10-4 ±2*10-5 jami. 5000 V

AKIP-7503-1,9 GOhm 1,9 GOhm ±0,1% ±2*10-4 ±2*10-5 jami. 5000 V

AKIP-7503-2GOhm 2 GOhm ±0,1% ±2*10-4 ±2*10-5 jami. 5000 V

AKIP-7503-10GOhm 10 GOhm ±0,1% ±5*10-4 ±2,5*10-5 jami. 5000 V

AKIP-7503-19 GŌ 19 GŌ ±0,1% ±5*10-4 ±2,5*10-5 jami. 5000 V

AKIP-7503-20GOhm 20 GOhm ±0,1% ±5*10-4 ±2,5*10-5 jami. 5000 V

AKIP-7503-100GOhm 100 GOhm ±0,2% ±5*10-4 ±2,5*10-5 jami. 5000 V

AKIP-7503-190GOhm 190 GOhm ±0,2% ±5*10-4 ±2,5*10-5 jami. 5000 V

AKIP-7503-200GOhm 200 GOhm ±0,2% ±5*10-4 ±2,5*10-5 jami. 5000 V

AKIP-7503-1TOm 1 TOm ±0,5% ±5*10-4 ±5*10-5 jami. 5000 V

AKIP-7503-1,9 TOm 1,9 TOm ±0,7% ±1*10-3 ±1*10-4 jami. 5000 V

AKIP-7503-2TOm 2 TOm ±0,7% ±1*10-3 ±1*10-4 jami. 5000 V

No. Ism miqdori

1 Yagona raqamli qarshilik o'lchovi AKIP-7503 1"
