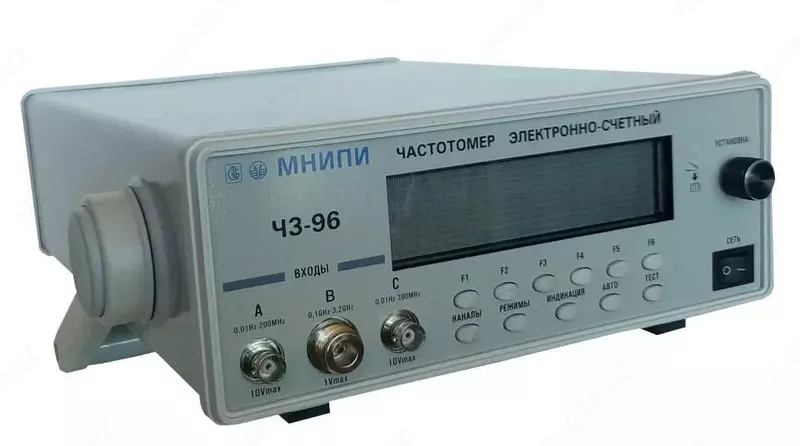

Ch3-96 - chastota o'lchagich

Elektron hisoblash chastotasi o'lchagich Ch3-96 - sinusoidal va impuls signallarining chastotasi va davrini o'lchash, pulsning davomiyligini, vaqt oralig'ini, impulsning ish aylanishini, elektr signallarining chastota nisbatini o'lchash, impulslar sonini hisoblash, mos yozuvlar chastotasi signallarini berish uchun mo'ljallangan.

Ch3-96 chastota o'lchagichning xususiyatlari:

B kirish (sinusoidal signal) - 100...3200 MGts;

Kirish A, C (sinus, puls) - 0,01...200 MGts;

Kirishlar bo'yicha ish aylanishini o'lchash - 1,000001...999999999;

Kanallardagi chastota nisbati: A/C, C/A, B/C va B/A - 999999999 gacha;

Kvars termostatli osilator;

Nominal chastota - 5 MGts;

Aniqlik: ±2·10-8 - 30 kun, ±5·10-8 - 12 oy;

Gabarit o'lchamlari (HxHxL) - 345x285x106 mm;

Og'irligi: 4 kg;

Yo'naltiruvchi generator: 12 oy davomida ±5·10-8.

Ch3-96 chastota o'lchagichning asosiy funktsiyalari:

Chastotani, davrni, vaqt oralig'ini, pulsning davomiyligini o'rtacha va tashqi marker generatoridan foydalangan holda A, C kirishlari bo'yicha o'lchash, impulslar sonini hisoblash;

B kirishida chastotani o'lchash;

Chastota nisbatini o'lchash - kanallar A / C, C / A, B / C;
