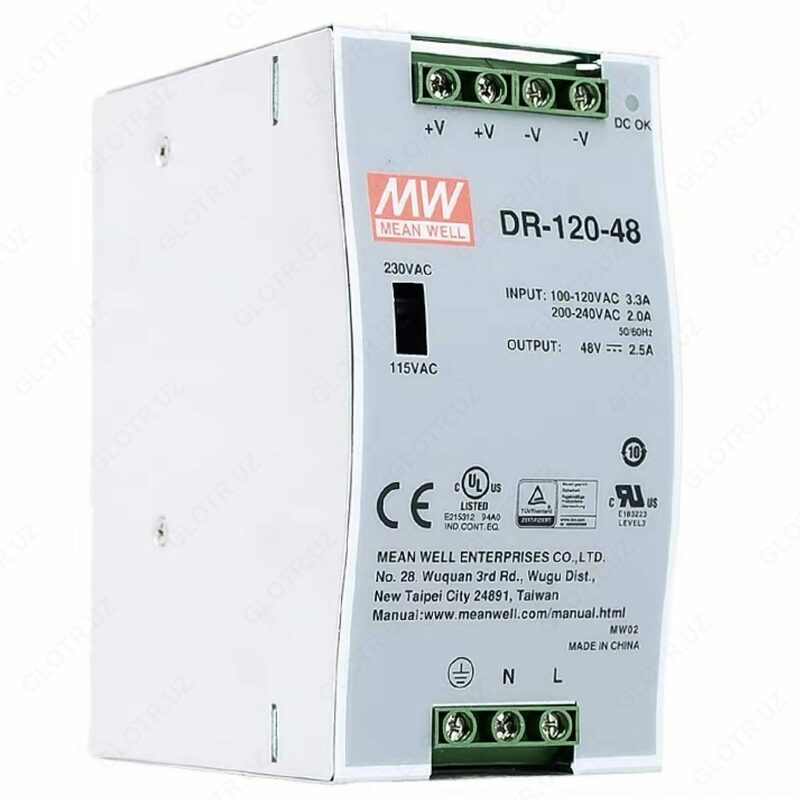

DR-120-48 DASTURIY TEMIR KOMPYUTSIYA TEXNIKASI (48V-2.5A)

Chiqish natijasi: DC kuchlanish 48V Nominal oqim 2.5A Hozirgi diapazoni 0-2.5A Nominal quvvat 120W Chiqish shovqin darajasi 100 mVp-p Kuchlanishni sozlash oralig'i 48-53V Voltajga bardoshlilik ± 1,0% Tarmoq bo'ylab chiqish voltajining beqarorligi ± 0,5% Yukning beqarorligi ± 1,0% To'liq yuklanish vaqtida o'rnatish vaqti, ko'tarilish vaqti 500 m, 70 m / 230 VAC, 70 m / 115VAC To'liq yuk ostida 36ms / 230VAC 32ms / 115VAC saqlash vaqti Kirish: 88 ~ 132VAC / 176 ~ 264VAC kirish chastotasi 248 ~ 370VDC orqali Chastotalar oralig'i 47 - 63 Gts Samaradorlik 85% AC 2.6A / 115VAC 1.6A / 230VAC L / P-0 / P kuchlanishiga bardosh berish: 3KVAC l / P-FG: 1.5KVAC O / P-FG: 0.5KVAC Joriy COLD START 20A / 115VAC 40A / 230VAC Himoya: Haddan tashqari kuchlanish 58-65V / Himoya turi: kuchlanishni o'chiring, tiklash uchun quvvatni yoqing Ortiqcha yuklanishdan himoya qilish 105 ~ 150% nominal chiqish quvvati / Himoya turi: doimiy oqim cheklangan, nosozlik o'chirilgandan so'ng avtomatik ravishda tiklanadi Atrof muhit sharoitlari Chorshanba: Ishlash harorati -10 dan + 60 ° C gacha Ish namligi 20 - 90% RH kondensatsiyasiz Harorat koeffitsienti ± 0.03% / ° C (0 - 50 ° C) Tebranish 10 - 500Hz, 2G 10min./1, 60 minut. har biri X, Y, Z o'qlari bo'ylab; O'rnatish: IEC60068-2-6 ga muvofiq Harorat va namlikni saqlash sharoitlari -20 - + 85 ° C, 10-95% RH Xavfsizlik va EMI: UL508, UL60950-1, TUV EN60950-1 xavfsizlik standartlari tasdiqlangan Izolyatsiya qarshiligi l / P-O / P, l / P-FG, O / P-FG: 100M Ohm / 500VDC / 25 ° C / 70% RH EN55011 .EN55022 (CISPR22) B sinfiga, EN61000-3-2, -3 ga elektromagnit moslashuv muvofiqligi. Elektromagnit immunitetga mosligi EN61000-4-2,3,4,5,6,8,11, EN55024, EN61000-6-2 (EN50082-2), og'ir sanoat darajasi, A mezonlari Boshqalar: MTBF (Kamchiliklar orasidagi o'rtacha vaqt) 432.1 minut. MIL-HDBK-217F (25 ° C) Olchamlari 65.5 * 125.2 * 100mm (W * H * D) 0.79Kg qadoqlash; 20pcs / 16.5Kg / 1.29CUFT
