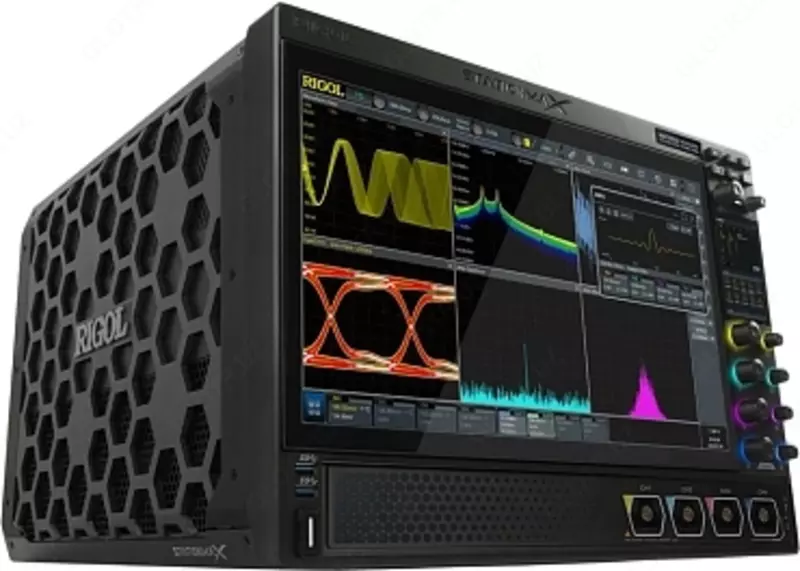

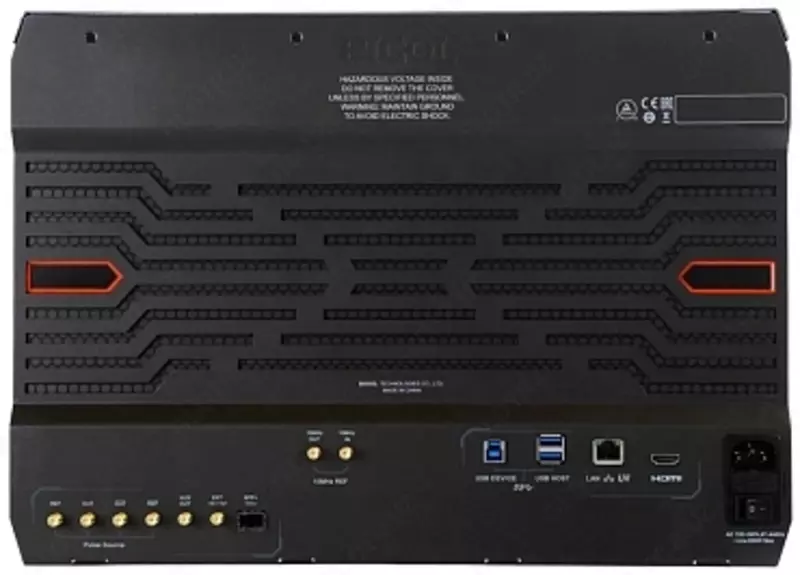

DS70504 - tarmoqli kengligi 5 gigagertsgacha bo'lgan yuqori darajadagi raqamli osiloskop

DS70504 Texnik xususiyatlari
Tarmoqli kengligi 50 Ohm 5 gigagertsli
1 Mohm 500 MGts
Namuna olish rejimi
Haqiqiy vaqt
Kanallar soni 4 analog + tashqi sinxronizatsiya kiritish
Maks. to'lqin shaklini olish tezligi
≥1000000 osc/s
Ro'yxatdan o'tish rejimi Oddiy
Tepalik detektori: 200 ps
Oʻrtacha (2, 4, 8, 16…65536 ta namunalar)
Yuqori aniqlik: 9 - 16 bit
Maksimal diskretizatsiya (real vaqt)
20 GS/s (10 GS/s - ikkita kanal/barcha kanal)
Yozib olish chuqurligi Standart: 500 M ball
Variant: 2000M ball (bitta kanal yoqilgan), 1000M ball (ikkita kanal/barcha kanal yoqilgan)
Vertikal tizimning parametrlari Kirish aloqasi ochiq, yopiq, tuproqli
Kirish empedansi
1 MOhm ± 1% || 17 pF ± 3 pF, 50 Ohm ± 2,5%
Zond susaytirishini hisobga olish
0,001X, 0,002X, 0,005X, 0,01X, 0,02X, 0,05X, 0,1X, 0,2X, 0,5X, 1X, 2X, 5X, 10X, 20X, 50X, 100X, 010, 100X0, 5000X , 10000X, 20000X, 50000X
Probni aniqlash avtomatik probni aniqlash Rigol
Maksimal kirish kuchlanishi 1 MOhm
30 Vrms yoki ±40 Vmax (DC + Vpeak)
50 Ohm 5 Vscs
Vertikal ruxsat
8 bit
9 - 16 bit (tanlanadigan) yuqori aniqlik rejimi
Vertikal burilish 1 Mohm
1 mV/div ~ 10 V/div
50 Ohm 1 mV/div ~ 1 V/div
Ofset diapazoni 1 Mohm
±1V (1mV/div ~ 50mV/div)
±30 V (51 mV/div ~ 260 mV/div)
±100 V (265 mV/div ~ 10 V/div)
50 Ohm ±1 V (1 mV/div ~ 100 mV/div)
±4 V (102 mV/div ~1 V/div)
Dinamik diapazon ±5 div (8 bit)
Tarmoqli kengligi chegarasi 1 Mohm
20 MGts, 250 MGts
50 Ohm 20 MGts, 250 MGts, 1 Gigagerts yoki 2 Gigagerts
To'liq masshtabning ±2% aniqligini oling
Ofset xatosi
<200mV/div: ±0,1div ±2mV ±1,5% ofset
≥200mV/div: ±0,1div ±2mV ±1% ofset
ESD himoyasi
±8 kV (BNC kirishida)
Kanaldan kanalga izolyatsiyasi ≥ 100:1 (DC ~ 1 GHz), ≥ 30:1 (> 1 GGts)
Parametrlar
gorizontal tizim Skanerlash tezligi 50 ps/div ~ 1000 s/div
Vaqtinchalik hal qilish
0,5 ps
Vaqt bazasi xatosi
±0,5 ppm ±1 ppm/yil
Ishga tushirishdan oldin maksimal kechikish: ≥ 1/2 ekran kengligi
Ishga tushirishdan keyingi: 1 soniya....100 ta holat
Kanallar orasidagi ofset tuzatish diapazoni ±100 ns
Tartiblar
Y-T, X-Y, magnitafon (≥200 ms/div), skanerlash (≥50 ms/div)
Vertikal oʻlchamli tarmoqli kengligi (ravshanlik) 20 GSa/sek 2 GGs (9 bit)
1 gigagertsli (10 bit)
500 MGts (12 bit)
200 MGts (14 bit)
75 MGts (16 bit)
10 GSa/sek 1 GHz (9 bit)
500 MGts (10 bit)
250 MGts (12 bit)
100 MGts (14 bit)
50 MGts (16 bit)
Shovqin darajasi 50 Ohm 500 µVrms (1 mV/div)
500 mVrms (2 mV/div)
800 mVrms (5 mV/div)
900 µVrms (10 mV/div)
2 mVrms (20 mV/div)
5 mVrms (50 mV/div)
8 mVrms (100 mV/div)
20 mVrms (200 mV/div)
40 mVrms (500 mV/div)
60 mVrms (1 V/div)
1 MOhm 500 µVrms (1 mV/div)
500 mVrms (2 mV/div)
600 mVrms (5 mV/div)
900 µVrms (10 mV/div)
2 mVrms (20 mV/div)
4 mVrms (50 mV/div)
8 mVrms (100 mV/div)
25 mVrms (200 mV/div)
30 mVrms (500 mV/div)
60 mVrms (1 V/div)
110 mVrms (2 V/div)
300 mVrms (5 V/div)
600 mVrms (10 V/div)
O'lchovlar Kursor Kursorlar soni
2 juft XY kursorlari
Qo'lda rejimlar (DY, DX, 1/DAX)
kuzatish
avtomatik o'lchovlar
X-Y rejimidagi o'lchovlar X = 1-kanal, Y = 2-kanal
Avtomatik Avtomatik o'lchovlar soni 41 turdagi
Analog kanallar manbasi (CH1 ~ CH4), matematik ishlov berish natijasi (Math1 ~ Math4)
O'lchash rejimi: normal (dasturiy ta'minotga asoslangan, xotira ≥1 M ball bilan)
yuqori aniqlik bilan (xotiraning butun uzunligi bo'ylab)
Maksimal miqdor
Har bir kanalda 14 tur ko'rsatiladi
Vertikal Vmax, Vmin, Vpp, Vtop, Vbase, Vamp, Vupper, Vmid, Vlower, Vavg, VRMS, Per. VRMS, Trans. VRMS, Overshoot, Preshoot, Maydon, Davr maydoni
Gorizontal davr, chastota, ko'tarilish vaqti, tushish vaqti, +kenglik, -kenglik, +burch, -vazifa, ijobiy impulslar soni, salbiy impulslar soni, ko'tarilgan chekkalar soni, pasayish qirralari soni, Tvmax, Tvmin, +burilish tezligi, -burilish tezligi
Boshqa
Kechikish(A↑-B↑), Kechikish(A↑-B↓), Kechiktirish(A↓-B↑), Kechiktirish(A↓-B↓), Faza(A↑-B↑), Faza(A↑- B↓), Faza (A↓-B↑), Faza (A↓-B↓)
Statistik ma'lumotlar joriy, o'rtacha, maksimal, min, standart og'ish, vaqtni hisoblash
