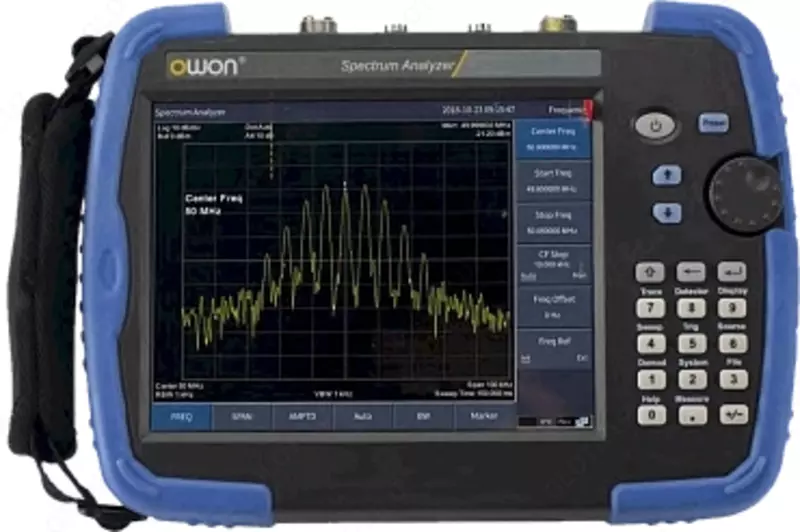

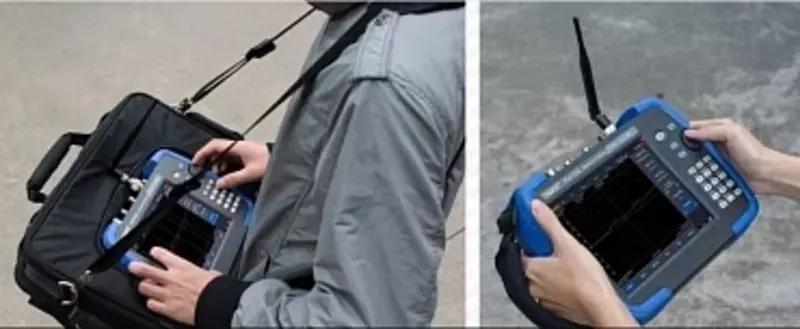

OWON HSA1075-TG - Spektr analizatori

OWON HSA1075-TG texnik xususiyatlari
Chastota diapazoni 9 kHz - 7,5 gigagerts
Ruxsat 1 Hz
Aşınma tezligi yiliga 1 ppm
Faza shovqini (1 gigagertsli) < - 106 dBc/Hz @ 10 kHz ofset
Ruxsat O'tkazish qobiliyati (-3 dB) (RBW) 1 Gts dan 1 MGts gacha 1 - 3 - 5 - 10 bosqichlarda
Aniqlash rejimlari: Avtomatik, Oddiy, Ijobiy cho'qqi, salbiy cho'qqi, namuna, RMS, o'rtacha kuchlanish, kvazi-peak
Trace funksiyalari yangilash, maksimal ushlab turish, minimal ushlab turish, ko‘rish, yopish, o‘rtacha
dBm, dBmW, dBpW, dBmV, dBmV, W, V daraja koordinatalarining o'lchov birligi
O'rtacha shovqin darajasi
9 kHz dan 1 MGts gacha oldindan kuchaytirgichni o'chirish: -95 dBm < -88 dBm
1 MGts dan 500 MGts gacha: -140 dBm < -130 dBm
500 MGts dan 3,6 gigagertsgacha: -138 dBm < -128 dBm
3,6 gigagertsdan 6 gigagertsgacha: -134 dBm < -124 dBm
6 gigagertsdan 7,5 gigagertsgacha: -129 dBm < -119 dBm
100 kHz dan 1 MGts gacha bo'lgan oldindan kuchaytirgich: -135 dBm < -128 dBm
1 MGts dan 500 MGts gacha: -160 dBm < -150 dBm
500 MGts dan 3,6 gigagertsgacha: -158 dBm < -148 dBm
3,6 gigagertsdan 6 gigagertsgacha: -154 dBm < -144 dBm
6 gigagertsdan 7,5 gigagertsgacha: -149 dBm < -139 dBm
Fazali shovqin
10 kHz ofset < -106 dBc/Hz
100 kHz < -104 dBc/Hz
1 MGts < -115 dBc/Hz
Chastotani tozalash kengligi
Qurilmaning maksimal chastotasigacha 0 Hz, 100 Hz oralig'ini tozalash
Aniqlik skanerlash kengligi / (skanerlash aniqligi - 1)
Tarmoqli kengligi
Tarmoqli kengligi 1 Gts dan 1 MGts gacha, ketma-ketlikda 1 - 3 - 5 - 10 qadam
Tarmoqli kengligi aniqligi < 5% tipik
Ruxsat etilgan filtr shakli omili (60dB : 3dB) < 5 : 1 tipik (raqamli va Gaussga yaqin)
10 Gts dan 3 MGts gacha bo'lgan video tarmoqli kengligi 1 - 3 - 5 - 10 ketma-ketlikda
Amplituda va daraja
Amplitudani o'lchash diapazoni o'rtacha shovqin darajasi +10 dBm gacha, 100 kHz dan 10 MGts gacha, oldindan kuchaytirgich o'chirilgan
Malumot darajasi - 80 dBm dan + 30 dBm gacha, qadam 0,1 dBm
Old kuchaytirgich 20 dB, nominal, 9 kHz dan 3,6 gigagertsgacha
Chastota javobi
Oldindan kuchaytirgich o'chirilgan (fc ≥ 100K) ±0,8dB；±0,4dB (odatiy qiymat)
Old kuchaytirgich yoqilgan (fc ≥ 1MHz) ±0,9dB；±0,5dB (odatiy qiymat)
Farqi va aniqligi
Mutlaq amplituda aniqligi 20 ℃ dan 30 ℃ gacha, fc = 50 MHz, span = 200 kHz, tarmoqli kengligi = 10 kHz, o'tish diapazoni = 10 kHz, tepalik detektori, RF zaiflashuvi 10 dB, ishonch darajasi 95%;
oldindan kuchaytirgich o'chirilgan ±0,4 dB, kirish signali darajasi -20 dBm;
±0,5 dB da oldindan kuchaytirgich, kirish signali darajasi -40 dBm;
Kuzatuv generatori
Chastota diapazoni 100 kHz dan 7,5 gigagertsgacha
Chiqish quvvati darajasi -40 dBm dan 0 dBm gacha
Chiqish darajasi aniqligi 1 dB
Chiqish tekisligi ±3 dB
Umumiy xususiyatlar
Sensorli LCD displeyni ko'rsatish
Displey diagonali 8 dyuym
USB, LAN interfeysi
O'lchamlari 265 x 190 x 58 mm
Yalpi og'irligi 5,6 kg
