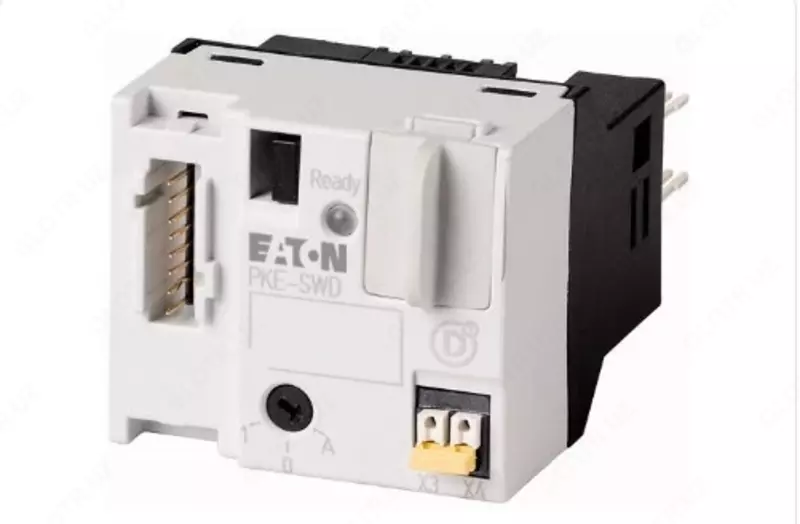

PKE-SWD-32 SmartWire tizimining qo'lda/avtomatik rejimlari uchun PKE uchun aloqa moduli.

Texnik xususiyatlari
Umumiy ma'lumot
Standartlar va qoidalar IEC/EN 61131-2EN 50178IEC/EN 60947
Olchamlari (G x Y x D) 45 x 38 x 76 mm
Og'irligi 0,04 kg
DILM7…DILM32-ga o'rnatish
O'rnatish pozitsiyasi DILM7 dan DILM32 gacha
Mexanik tashqi sharoitlar
Himoya klassi (IEC/EN 60529, EN50178, VBG 4) IP20
Tebranish (IEC/EN 61131-2:2008) doimiy kengligi 3,5 mm 5 - 8,4 Gts
Tebranish (IEC/EN 61131-2:2008) doimiy tezlashuv 1 g 8,4 - 150 Gts
Zarba qarshiligi (IEC/EN 60068-2-27) yarim sinus 15 g/11 ms 9 zarba
Tushish (IEC/EN 60068-2-31) [Tashish balandligi] 50 mm
Erkin tushish, qadoqlangan (IEC/EN 60068-2-32) 0,3 M
Elektromagnit moslik (EMC)
Haddan tashqari kuchlanish toifasi II
ifloslanish darajasi 2
Elektrostatik zaryadsizlanish (IEC/EN 61131-2:2008) Havo chiqishi (3-daraja) 8 kV
Elektrostatik zaryadsizlanish (IEC/EN 61131-2:2008) Kontaktli razryad (2-daraja) 4 kV
Elektromagnit maydonlar (IEC/EN 61131-2:2008)80–1000 MGts 10 V/m
Elektromagnit maydonlar (IEC/EN 61131-2:2008)1,4–2 GHz 3 V/m
Elektromagnit maydonlar (IEC/EN 61131-2:2008)2–2,7 GHz 1 V/m
Radio chastotali shovqinlarni bostirish SmartWire-DT EN 55011 sinf A
Impuls kuchlanish (IEC/EN 61131-2:2008, 3-daraja)SmartWire-DTS kabellari1 kV signal simlari
Impuls kuchlanish (IEC/EN 61131-2:2008, 3-daraja)CAN/DP avtobus kabellariSmartWire-DT kabellari 1 kV
Kirish (IEC/EN 61131-2:2008, 3-daraja) 10 V
