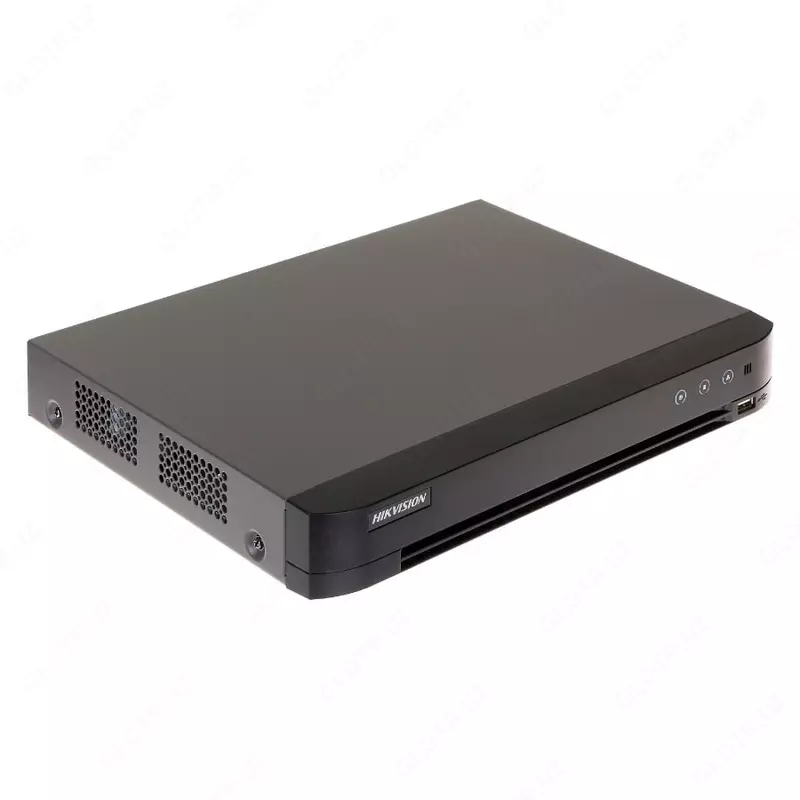

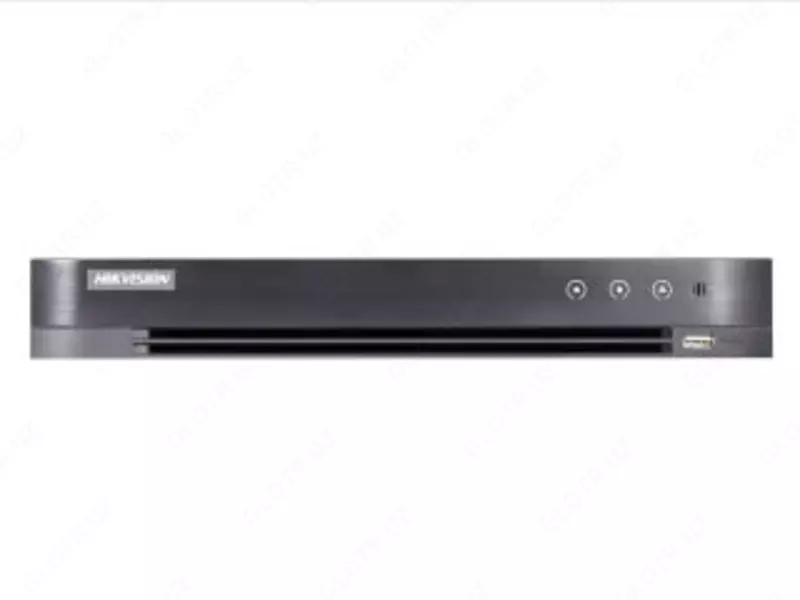

Raqamli HD-TVI videoregistrator DVR "HIKVISION iDS-7208HQHI-K2/4S" 8 kanal

Analog / HD-TVI, AHD va CVI kameralar uchun 8 kanalli gibrid HD-TVI magnitafon + 4 kanalli IP@6MP HIKVISION iDS-7208HQHI-K2/4S

DVR ko'p funksiyali va energiya tejamkor video kuzatuv yechimi bo'lib, HD-TVI chiqishi, HDMI real vaqtda kuzatuvi. HIKVISION brendi ishlab chiqaruvchilari rangli va monoxromli video oqimlarni boshqarish, yozib olish, saqlash va ijro etish uchun markazlashtirilgan interfeysga ega DVRni ishlab chiqdilar.

DVR kameralari statsionar va mobil video kuzatuv tizimlarida keng qo'llaniladi. Signal magnitafonga kameralarga ulangan kabellar orqali uzatiladi, olingan ma'lumotlar maxsus algoritm bo'yicha siqilgan grafik ma'lumotlarga aylantiriladi.

DVR xususiyatlari:

Analog/HD-TVI, AHD va CVI kameralar uchun 8 kanalli gibrid HD-TVI yozuvchisi

H.265 Pro+/H.265 Pro/H.265

HDTVI/AHD/CVI/CVBS/IP video kirishlari

Koaksiyal kabel orqali ovoz

IP video kirishlari: 8/16 kanalgacha (8 MPgacha)

HDTVI signali: maks. 1080p uchun 800m va 720p uchun 1200m

Har bir HDD 10TB gacha

Texnik xususiyatlari:

Ko'rish - DVR

Turi - raqamli

Brend - HIKVISION

Model - iDS-7208HQHI-K2/4S

Yozib olish

Videoni siqish - H.265 Pro+/H.265 Pro/H.265/H.264+/H.264

Kodlash ruxsatnomalari

8MP/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF

Kadr chastotasi

Asosiy oqim:

8 MP 15 kadr, 5 MP @ 20 kadr, 3 MP @ 18 kadr

4MP/ 1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N)

Substream - WD1/4CIF/CIF@25fps(P)/30fps(N)

Video bit tezligi - 32 Kbit / s dan 16 Mbit / s gacha

Dual Stream - Qo'llab-quvvatlanadi

Oqim turi - Video, video va audio

Ovozni siqish - G.711u

Audio bit tezligi - 64 Kbit / s

Video va audio

IP video kiritish - 8 kanal (16 kanalga kengaytirish)

Ruxsat - 8 MPgacha

IP kamerani qo'llab-quvvatlash - H.265+/H.265/H.264+/H.264

Analog video kiritish - 8 kanal

BNC - (1,0 V p-p, 75 ohm), koaksiyal kabel orqali ulanishni qo'llab-quvvatlash

HDTVI kirish - 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25

AHD kiritish - 5 MP, 4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30

HDCVI kirish - 5 MP, 4 MP, 1080p25, 1080p30, 720p25, 720p30

CVBS kiritish - PAL/NTSC

CVBS chiqishi - 1 kanal, BNC (1,0 V p-p, 75 ohm),

Ruxsat PAL - 704 × 576, NTSC: 704 × 480

VGA chiqishi - 1ch, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz

HDMI chiqishi - 1 kanal, 4K(3840×2160)/30Hz, 2K(2560×1440)/60Hz, 1920×1080/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×07Hz

Audio kirish - 4 kanal, RCA (2,0 V p-p, 1 kOm)

Ovoz chiqishi - 1 kanal, RCA (chiziqli, 1 kOm)

Ikki tomonlama audio - 1 kanal, RCA (2,0 V p-p, 1 kŌ) (birinchi audio kirishdan foydalanilganda)

Sinxron ijro - 8 kanal

Net

Masofaviy ulanish - 64

Tarmoq protokoli - TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF

Tarmoq interfeysi - 1, RJ45 avtomatik 10M/100M/1000M Ethernet

Yordamchi interfeyslar

SATA - 2 SATA

Imkoniyatlar - har bir disk uchun 10 TB gacha

Seriyali interfeys - RS-485 (yarim dupleks)

USB

Old panel - 1 × USB 2.0

Orqa panel - 1 × USB 3.0

Signalning kirish/chiqishlari - 8/4

Quvvat manbai - shahar 12 V, 3,1 A

Quvvat iste'moli (HDDsiz) ≤ 20 Vt

Ishlash harorati - -10 dan +55 ° C gacha

Ishlash namligi - 10 dan 90% gacha

Olchamlari - 380 × 320 × 48 mm

Og'irligi (haydovchisiz) ≤ 2 kg

Ishlab chiqaruvchi mamlakat - Xitoy

Kafolat muddati - 3 yil
