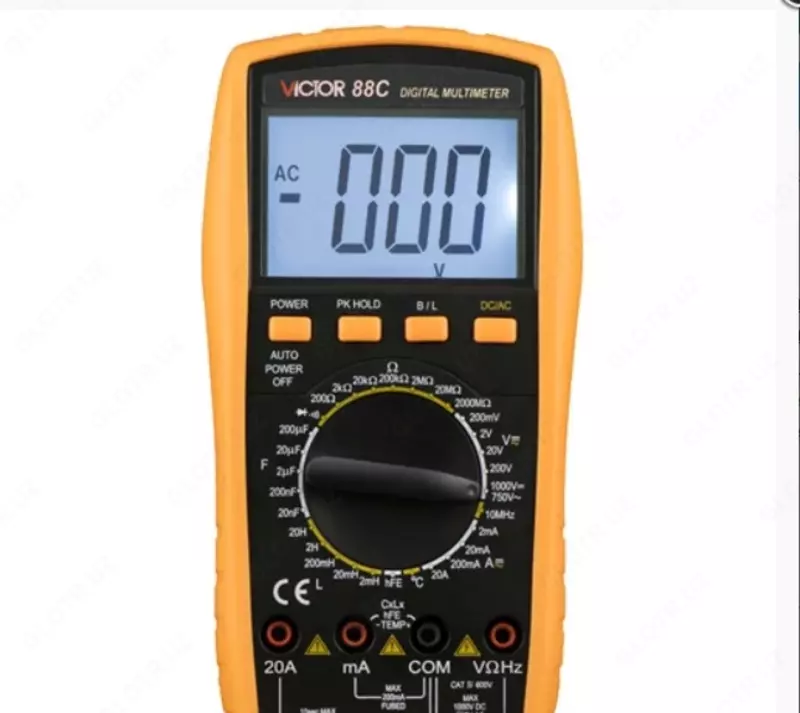

Viktor 88C - raqamli multimetr

Viktor 88C raqamli multimetrining texnik xususiyatlari:
Parametr O'lchov diapazonlari Aniqlik
Doimiy kuchlanish 200mV/2V/20V/200V ±(0,5%+3)
1000V ±(1,0% + 5)
AC kuchlanish 200mV ±(1,2% + 3)
2V/20V/200V ±(0,8%+5)
750V ±(1,2% + 5)
Doimiy oqim 2mA/20mA ±(0,8%+3)
200 mA ±(1,2% + 4)
20A ±(2,0% + 5)
AC oqimi 2mA/20mA ±(1,0%+5)
200 mA ±(2,0% + 5)
20A ±(3,0% + 10)
Qarshilik 200 ohm ±(0,8% + 5)
2kŌ/20kũ/200kũ/2MŌ ±(0,8% + 3)
20 MŌ ±(1,0% + 15)
2000 MŌ ±(5,0% + 20)
Imkoniyatlar 20nF/200nF/2uF/20uF ±(2,5% + 20)
200 uF ±(5,0% + 5)
Chastota 2KHz/20KHz/200KHz/2MHz/10MHz ±(0,5%+4)
Induktivlik 2mH/20mH/200mH/2H/20H ±(2,5% + 20)
Harorat -40°C~400°C/-40°F~752°F ±(1,0% + 4)
400°C~1000°C/752°F~1832°F ±(1,5% + 15)
Diyot testi Diyot bo'ylab to'g'ridan-to'g'ri kuchlanish pasayishining taxminiy qiymatini ko'rsatadi
"Uzluksizlik" O'chirish qarshiligi (70±20) Ohm dan kam bo'lsa, ovoz signali yoqiladi.
hFE Tekshirilayotgan tranzistorning taxminiy hFE qiymatini (0-1000) ko'rsatadi (har qanday turdagi)
