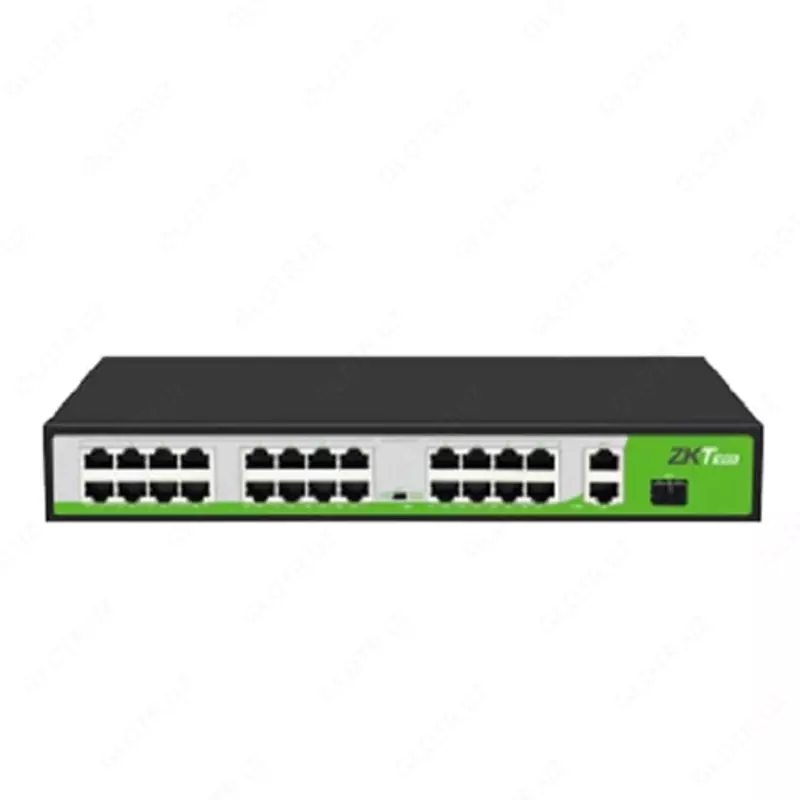

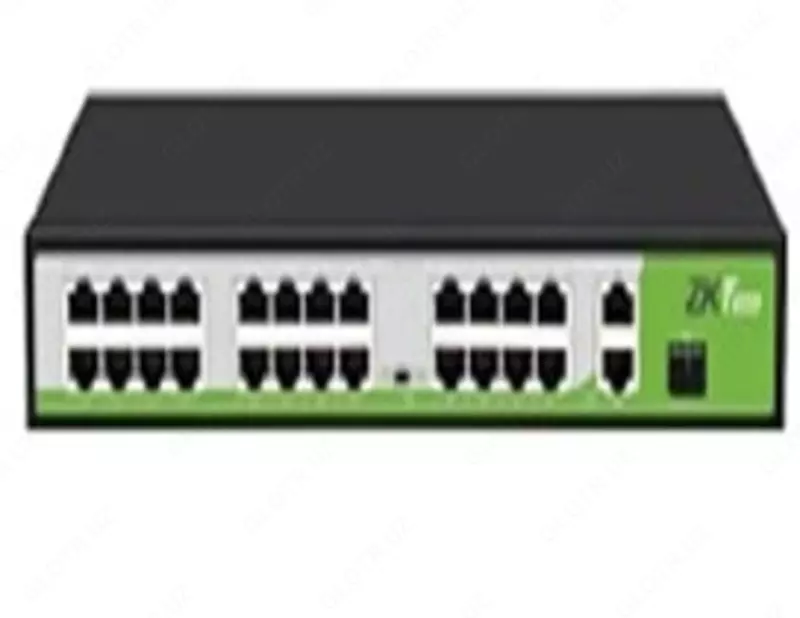

Wired switch ZKTECO "PE242-300-C" 2 incoming ports, 24 POE ports

Wired switch ZKTECO

The PE162-200-C is an advanced switch that provides a network point for data and power.

The switching device has 24 PoE ports, which can provide IEEE802.3 af/at standard power over network cables. With advanced IEEE802.3 af/at auto power detection algorithm, connected equipment, PoE or non-PoE, is securely protected. The switch has 2 incoming ports (10/100/1000 Mbps) + 1 SFP optical port (10/100/1000 Mbps) with a maximum data transfer distance of up to 250 meters. Maximum PoE output power 30W per port.

Advantages:

Complies with IEEE 802.3, IEEE 802.3u and IEEE802.3af/at standards

PoE maximum output power is 15.4W (IEEE 802.3af) / 30W (IEEE 802.3at)

250 meters PoE power and data transmission distance (Cat 6)

Self-adapting MDI/MDIX

Switching storage and forwarding

Lightning protection

Characteristics:

View - Switch

Type - power and data transfer

Brand - ZKTECO

Model - PE242-300-C

24 PoE ports (10/100 Mbps)

2 incoming ports (10/100/1000 Mbps)

1 SFP optical port (10/100/1000 Mbps)

Long distance PoE transmits power and data 250 meters (Cat 6)

Maximum PoE output power 30W per port

Complies with IEEE 802.3af and IEEE 803.3at

VLAN dialing and PoE support - Sentry

Lightning protection port - 4kv, ESD 8kv

Power supply - Alternating current

Power supply included - Yes

Total power of all ports (max.) - 120 W

POE - 802.3at/af

Data exchange rate - 2 Gbps

Packet forwarding speed - 1.488 Mbps

Nutrition

Supply voltage - AC110-260V input 52V2.88A output

Max. consumption - 150 W

Operating temperature -20 to +55 °C

Dimensions - 320 x 207 x 45 mm

Weight - 2.0 kg

Network standards - IEEE 802.3, IEEE 802.3af, IEEE 802.3at

Supported cable types - Cat3,Cat5e,Cat6a
