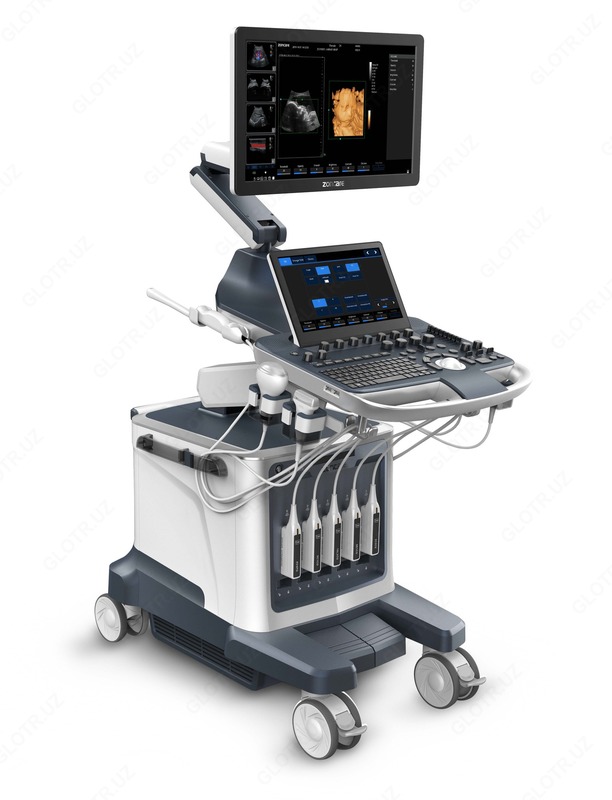

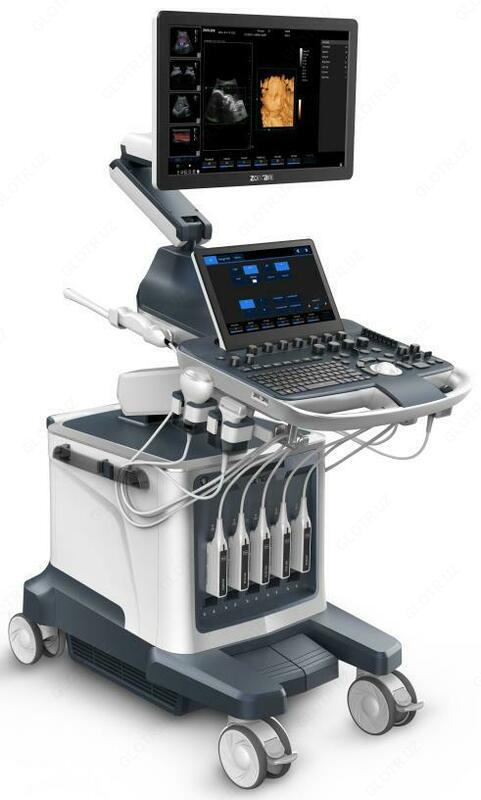

УЗИ Аппарат ViV80 Full Digital Color Doppler Ultrasound System

Описание ViV80 Full Digital Color Doppler Ultrasound System

Модель: ViV80
Производитель: Zoncare
Страна: Китай
Гарантия: 1 год
В комплект:
1-Конвекс датчик
2-Линейный датчик

- 21.5 inch Medical Display can be rotabed, stretched and folded
- 13.3 inch high sensitive touch Screen, 60 degree reversible
- Adjustable console height and keyboard rotation
- 5 Activated transducer connectors
- Image Mode: B, B Steer, 2B/4B, M, B/M, CDFI, PDI, CM, PW, AMM,
CW, TDI (TVI, TVD, TVM, TEI), Panoramic, Color Panoramic,
Trapezoidal, 3D/4D.
- Clinical Applications: Abdomen, Cardiac, Obstetrics, Gynecology,
Urology, Pediatric, Small Parts, Vascular, Superficial, Orthopedics,
MSK, Nerve, Custom.
- Extended Imaging (EFov), Tissue Specific Imaging (TSI), Tissue
Harmonic Imaging (THI), Speckle Reduction Imaging (SRI), Spatial
Composite Imaging (SCI), Frequency Composite Imaging (FCI),
B/C/D Chromatic Imaging,
- Raw data storage for offline report and parameter adjustment
- One Key Imaging Auto Optimization
- Single Crystal Imaging Supported
- Built-in DVD ROM
- Data Interface：Video, S-Video, Audio in/out, DVI, VGA, HDMI,
RS-232, RJ45, DICOM3.0, USB, Printer port.
- Optional Built-in Lithium battery

1 System Overview

1.1 Clinical Applications
Abdomen
Obstetrics
Gynecology
Urology
Cardiology
Pediatric
Small Parts
Blood Vessel
Superficial
Orthopedic
MSK
Nerve
Custom

1.2 Transducer Types
Convex transducer
Linear array
Trans-vaginal transducer
Micro-convex transducer
Phased array transducer
4D volume transducer

1.3 Imaging modes
B-Mode
B steer
2B/4B-Mode
M-Mode
B/M-Mode
CDFI - Mode
PDI -Mode
CM-Mode
PW-Mode
Anatomic M mode
Panoramic
Color panoramic
Trapezoidal (Linear probe)
Extended imaging(Efov)
CW -Mode
TDI(TVI, TVD,TVM,TEI)
3D/4D Mode

1.4 Standard features
B-Mode
B-Mode
B steer
2B/4B-Mode
M-Mode
B/M-Mode
CDFI - Mode
PDI -Mode
CM-Mode
PW-Mode
Anatomic M mode
Panoramic
Color panoramic
Trapezoidal (Linear probe)
Extended imaging(Efov)
Tissue Specific Imaging (TSI)
Tissue Harmonic Imaging (THI)
Speckle Reduction Imaging (SRI)
Spatial Composite Imaging(SCI)
Frequency Composite Imaging(FCI)
B/C/D Chromatic imaging
Pan Zoom
Local Zoom
Auto Optimization
Image Rotation
Auto Calculate
Auto IMT
Archive management
Raw data
Multiple pregnancies
HR Flow
Biopsy function
Velocity tag
LGC
HPRF
Imaging postprocessing
Imaging preprocessing
21.5 inch monitor
13.3 inch touch screen
Thermal printer slot
Hidden draw-out keyboard
Gel heating cup

1.5 Optional features
Built-in Li-ion battery
Elastic imaging
CW Mode
TDI（TVI,TEI,TVM, TVD）
Static 3D
4D Module
Laser/thermal printer
Foot Switch
Puncture
DICOM
Wireless Connection
ECG Function
DVD Recorder
UPS

2 Physical Specification

2.1 Dimension and weight
Width: approx. 591mm
Body width: approx. 470mm
Height:- 1305mm-1708mm (With adjustable)
Thickness: approx.962 mm
Weight: approx. 100kg

2.2 Monitor
21.5-inch high resolution color display screen
Resolution: 1920× 1080
Height range 20cm adjustable
Rotate angle range 180(L/R)
Tilt angle range 0-90(U/D)

2.3 Touch Screen
13.3-inch touch screen
Tilt around 60
Resolution: 1024×800

2.4 Transducer ports and holders
5 activated transducer ports
1 Pen probe port
5 removable transducer holders
4 probe wire hook

2.5 Electrical power
AC adapter Input
- Voltage: 100-240V
- Frequency: 50/60Hz
- Power Consumption: 650VA

2.5 Operation Environment
Ambient temperature: 5+40
Relative humidity: 25%-85%
Atmospheric pressure: 860hPa-1060hPa

2.6 Storage &Transport Environment
Ambient temperature: -20+55
Relative humidity: 10%-95%
Atmospheric pressure: 860hPa-1060hPa

Probe Parameters

3C5CE
- Applications: ABD, OB, GYN,PedABD,Urology
- Number of Elements: 128
- Harmonics frequency: 2.0, 2.5, 2.8, 3.2MHz
- Basic frequency: 2.5, 3.5, 4.0MHz
- Depth range: 40~420mm

3C5ME
- Applications: ABD, OB, GYN, PedABD,Urology
- Number of Elements: 128
- Harmonics frequency: 2.0, 2.5, 2.8, 3.2MHz
- Basic frequency: 2.5, 3.2, 4.5MHz
- Depth range: 40~420mm

10L2CD
- Applications: Carotid, Thyroid, Nerve,
Superficial, MSK, PedABD, Orthopedic,
Vascular
- Number of Elements: 128
- Harmonics frequency: 4.0, 4.5, 5.0, 6.2MHz
- Basic frequency: 7.5, 10, 12.5MHz
- Depth range: 20~280mm

7L5CF
- Applications: Carotid, Thyroid, Nerve,
Superficial, MSK, PedABD, Orthopedic,
Vascular
- Number of Elements: 128
- Harmonics frequency: 4.2, 4.7, 5.3, 6.1MHz
- Basic frequency: 5.0,7.5, 9.0MHz
- Depth range: 20~280mm

2P2MB
- Applications: Adult Cardiac, Ped Cardiac,
TCI, ABD
- Number of Elements: 64
- Harmonics frequency: 1.8, 2.0, 2.5, 3.0MHz
- Basic frequency: 2.0,2.5, 3.5MHz
- Depth range: 30~320mm

4V4PD
- Applications: ABD, OB, GYN
- Number of Elements: 128
- Harmonics frequency: 2.5, 2.8, 3.2, 3.6MHz
- Basic frequency: 3.0, 4.5, 5.5MHz
- Depth range: 40~400mm

6E1CD
- Applications: OB/GYN , Prostate
- Number of Elements: 128
- Harmonics frequency: 2.5, 3.2, 3.6, 4.2MHz
- Basic frequency: 4.5, 6.0, 8.5MHz
- Depth range: 20~280mm

5C1CD
- Applications: Ped ABD, Ped Cardiac, TCI
- Number of Elements: 128
- Harmonics frequency: 2.5, 3.2, 3.6, 4.2MHz
- Basic frequency: 4.5, 6.5, 7.0MHz
- Depth range: 20~280mm

2P2CC
- Applications: Adult Cardiac, Ped Cardiac,
TCI, ABD
- Number of Elements: 64
- Harmonics frequency: 1.8, 2.0, 2.5, 3.0MHz
- Basic frequency: 2.0, 3.0, 4.0MHz
- Depth range: 30-320mm

System Inputs & Outputs
USB Port: 6
AUDIO:L/R
VIDEO: 2
S-VIDEO: 2
VGA: 1
HDMI:1
DVI-D: 1
PRINT: 1
ECG port: 1
Network:1
AC IN: 1
AC OUT: 1
Ground pole: 1

Standard Package
Main Unit
Two probes as standard
Power cord/grounding cable
Fuse (2)
User’s Manual
Coupling Gel (0.25L)

Optional Accessories
Transducers
Lithium battery
Pedal Switch
Thermal Printer
Laser Printer
DICOM
Biopsy
