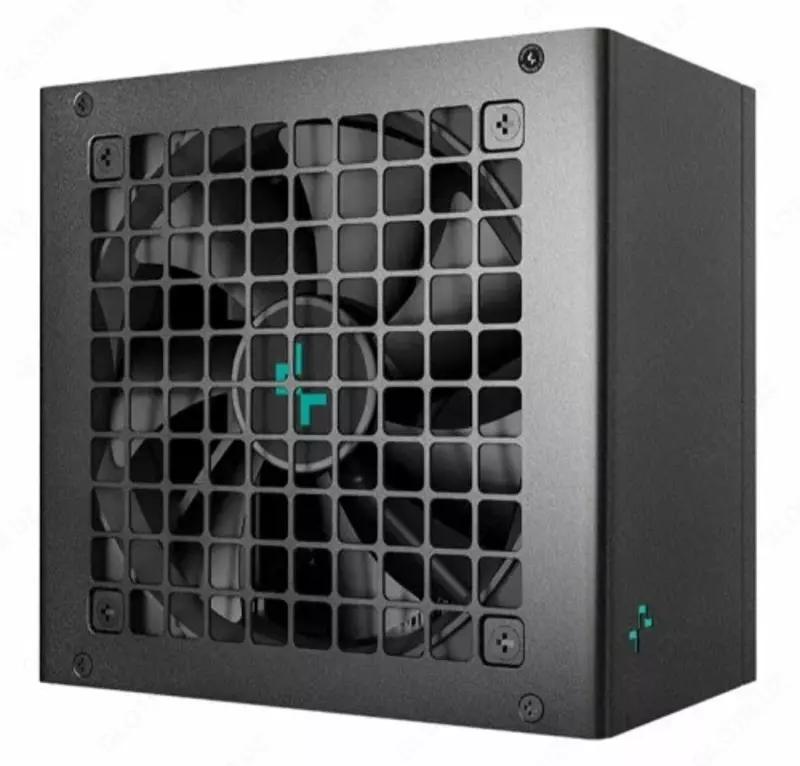

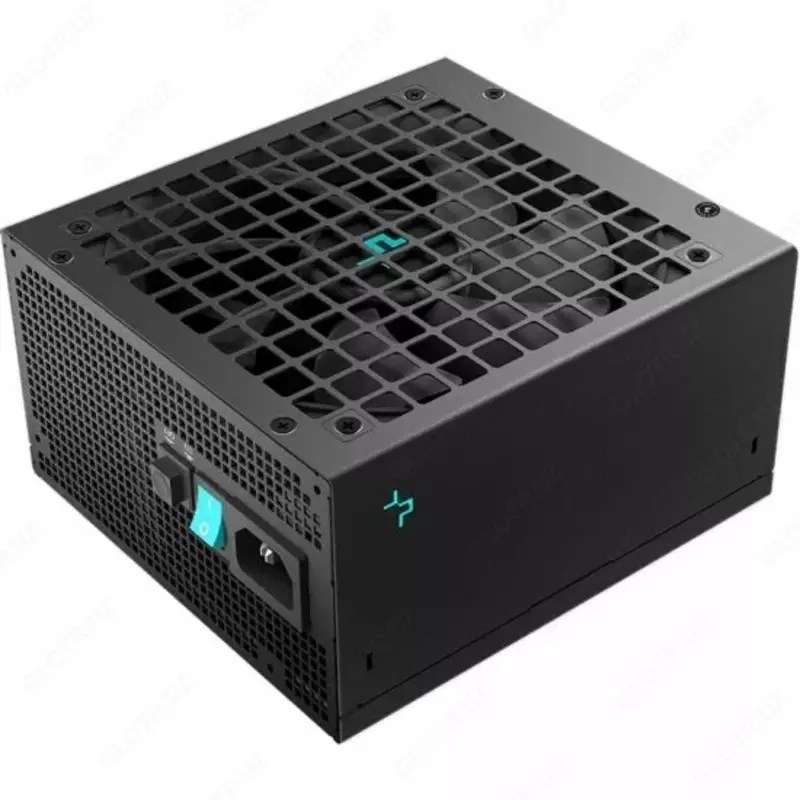

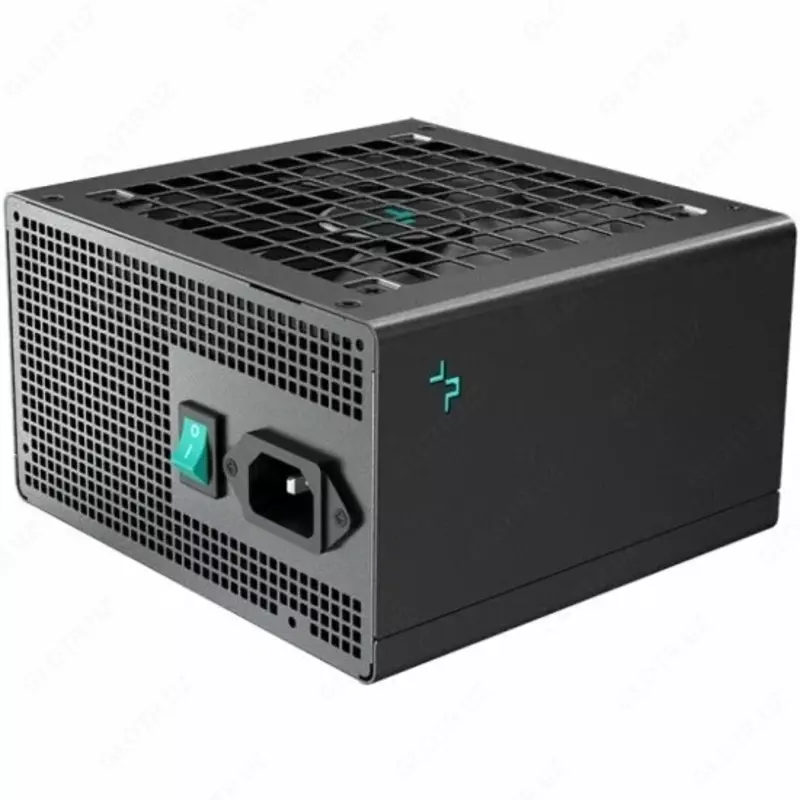

DeepCool PL750D 80 plus Bronze quvvat manbai

Asosiy ma’lumotlar

• Turi: quvvat bloki (Power Supply Unit)

• Model: DEEPCOOL PL750D

• Nominal quvvati: 750 W

Tashqi ko‘rinish

• Form-faktor: ATX

• Ajratiladigan kabellar: yo‘q

• Simlar o‘rami: yo‘q

• Yoritish: yo‘q

Kabellar va ulagichlar

• Asosiy quvvat ulagichi: 20+4 pin

• CPU quvvat ulagichlari: 2 × 4+4 pin

• PCI-E (videokarta) ulagichlari: 3 × 6+2 pin, 1 × 16 pin (12VHPWR)

• SATA ulagichlari: 8 ta

• Molex ulagichlari: 2 ta

• Floppy ulagichi: yo‘q

Kabel uzunligi

• Asosiy kabel: 550 mm

• CPU kabeli: 700 mm

• PCI-E kabeli: 550 mm

• SATA kabeli: 450 mm

Elektr parametrlari

• 12V liniyasi quvvati: 750 W

• 12V liniyasi toki: 62.5 A

• +3.3V liniyasi: 20 A

• +5V liniyasi: 20 A

• +5V Standby: 3 A

• -12V liniyasi: 0.3 A

• Kirish kuchlanishi: 100–240 V, 50/60 Hz

Sovutish tizimi

• Sovutish turi: aktiv

• Ventilyator o‘lchami: 120 × 120 mm

• Aylanish tezligini boshqarish: avtomatik

• Hybrid Mode: yo‘q

Sertifikat va himoya

• 80 PLUS sertifikati: Bronze

• PFC (quvvat koeffitsienti tuzatgichi): aktiv

• Standart: ATX 12V 3.0

• Himoya texnologiyalari: NLO, OCP, OPP, OTP, OVP, SCP, SIP, UVP

Qo‘shimcha ma’lumot

• Tarmoq kabeli: mavjud

• Komplekt: hujjatlar, mahkamlash to‘plami

O‘lchamlari

• Uzunligi: 140 mm

• Kengligi: 150 mm

• Balandligi: 86 mm

Kafolat

• Kafolat muddati: 1 yil.
